Bafang BBS01B 36V 250W Mid Drive Motor 8fun Bicycle Electric eBike Conversion Kit mid drive ebike kit new version

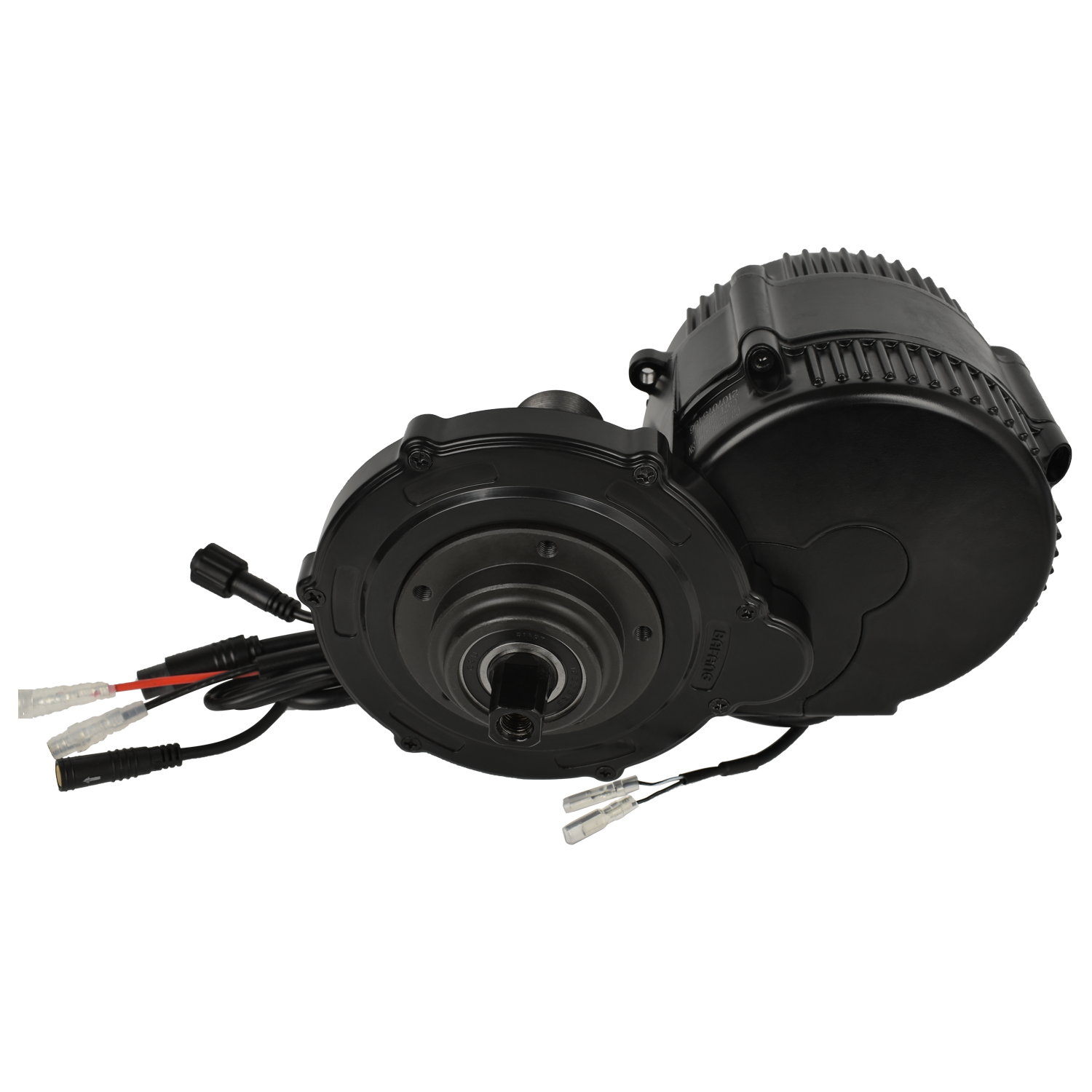

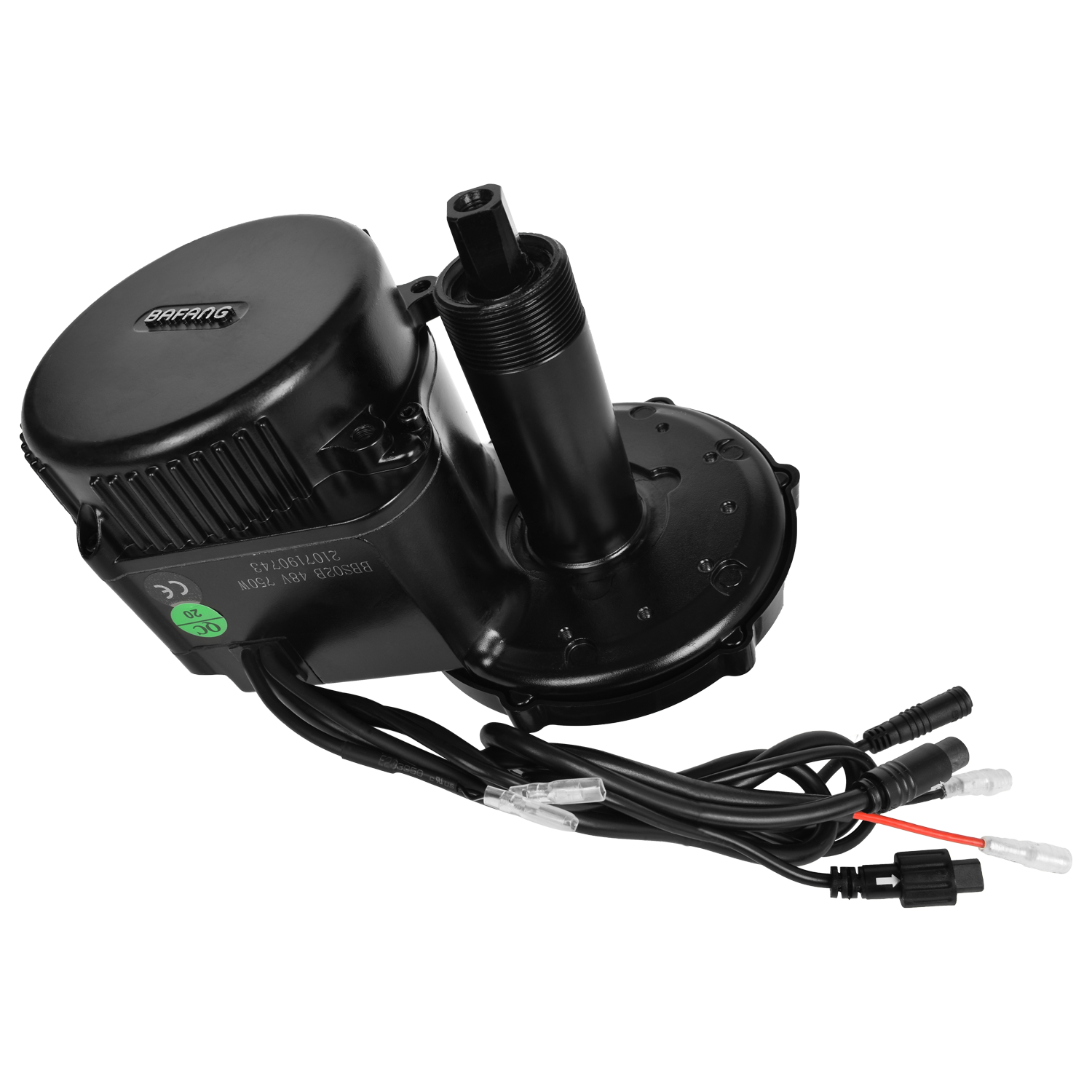

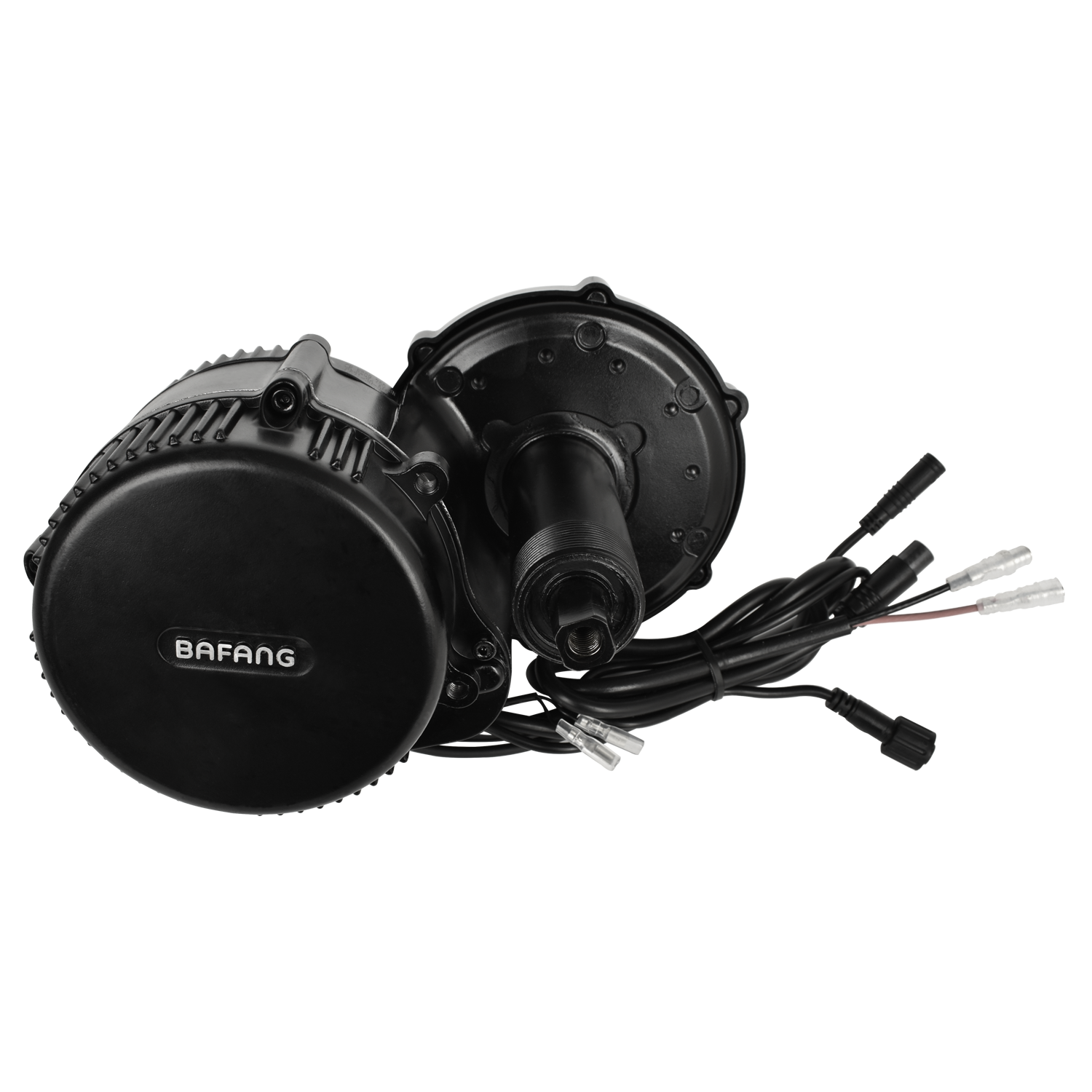

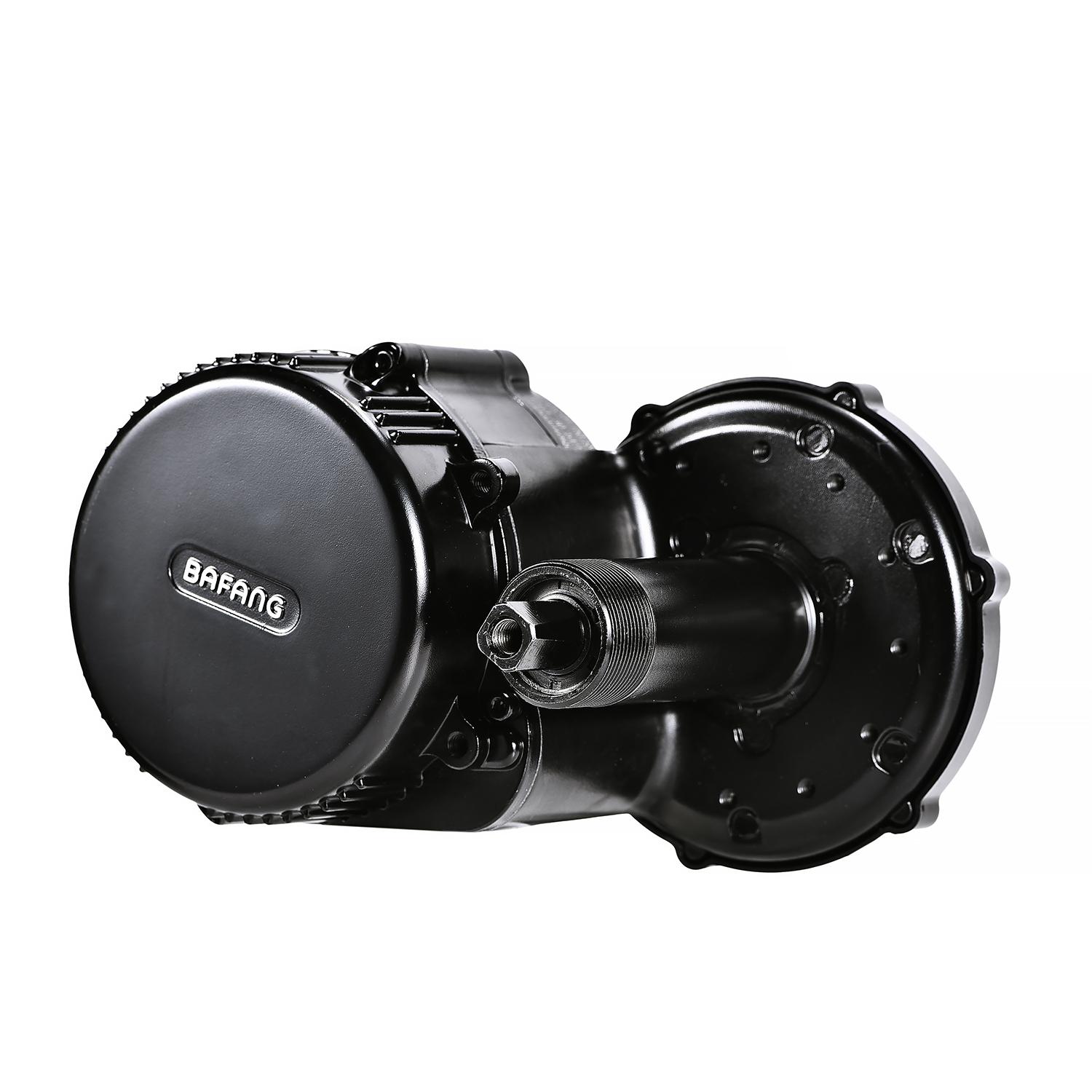

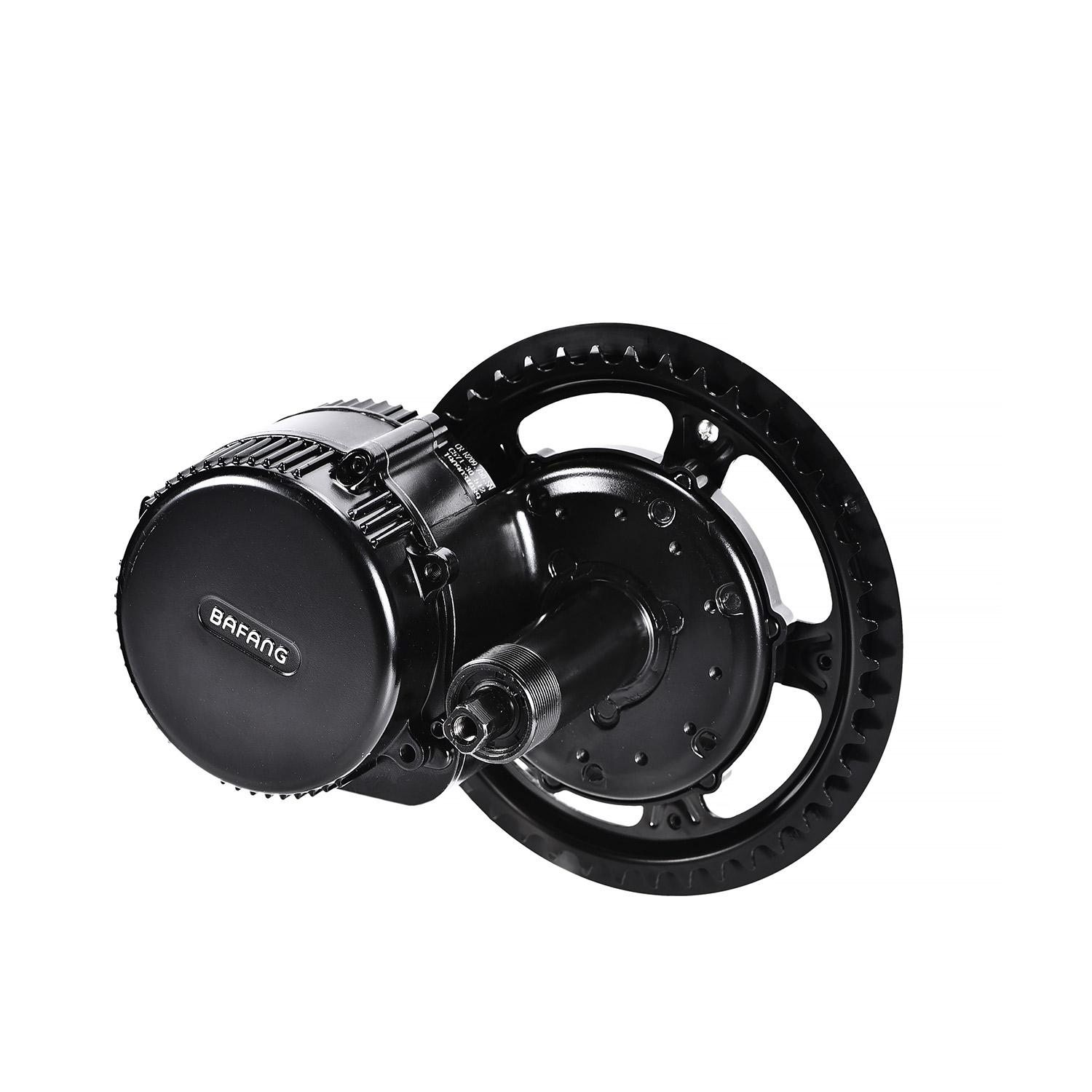

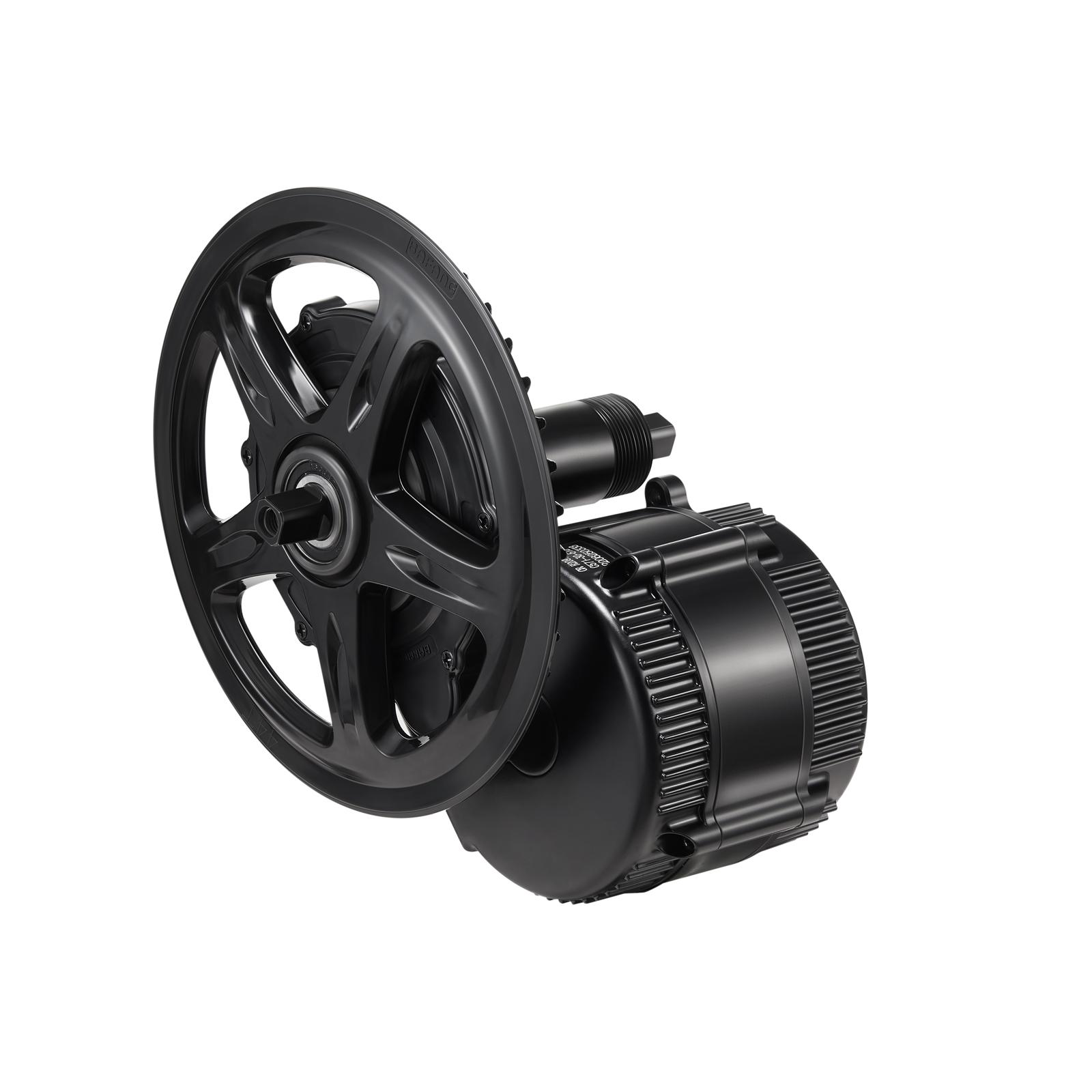

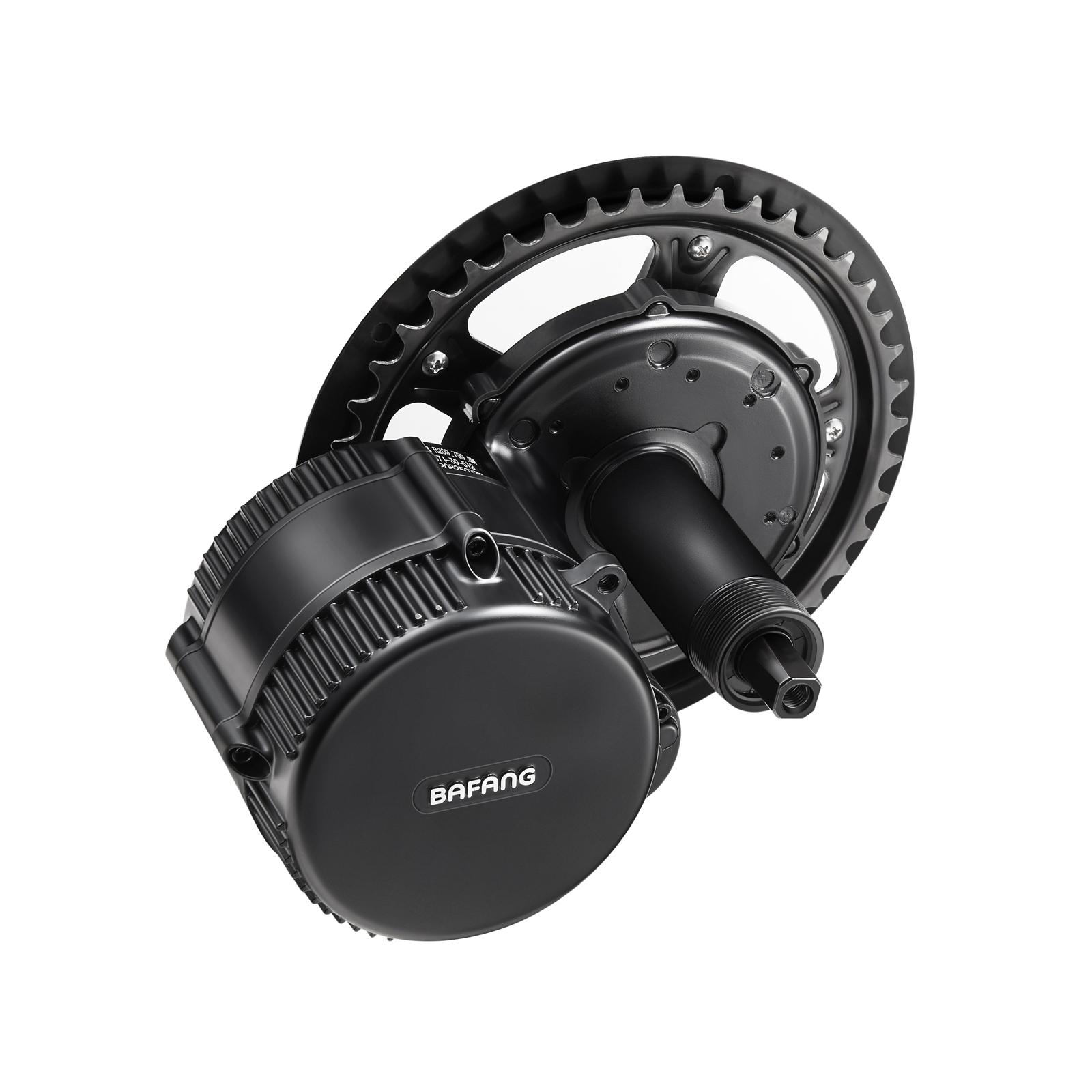

36V 250W Bafang Mid Drive Motor

Feature:

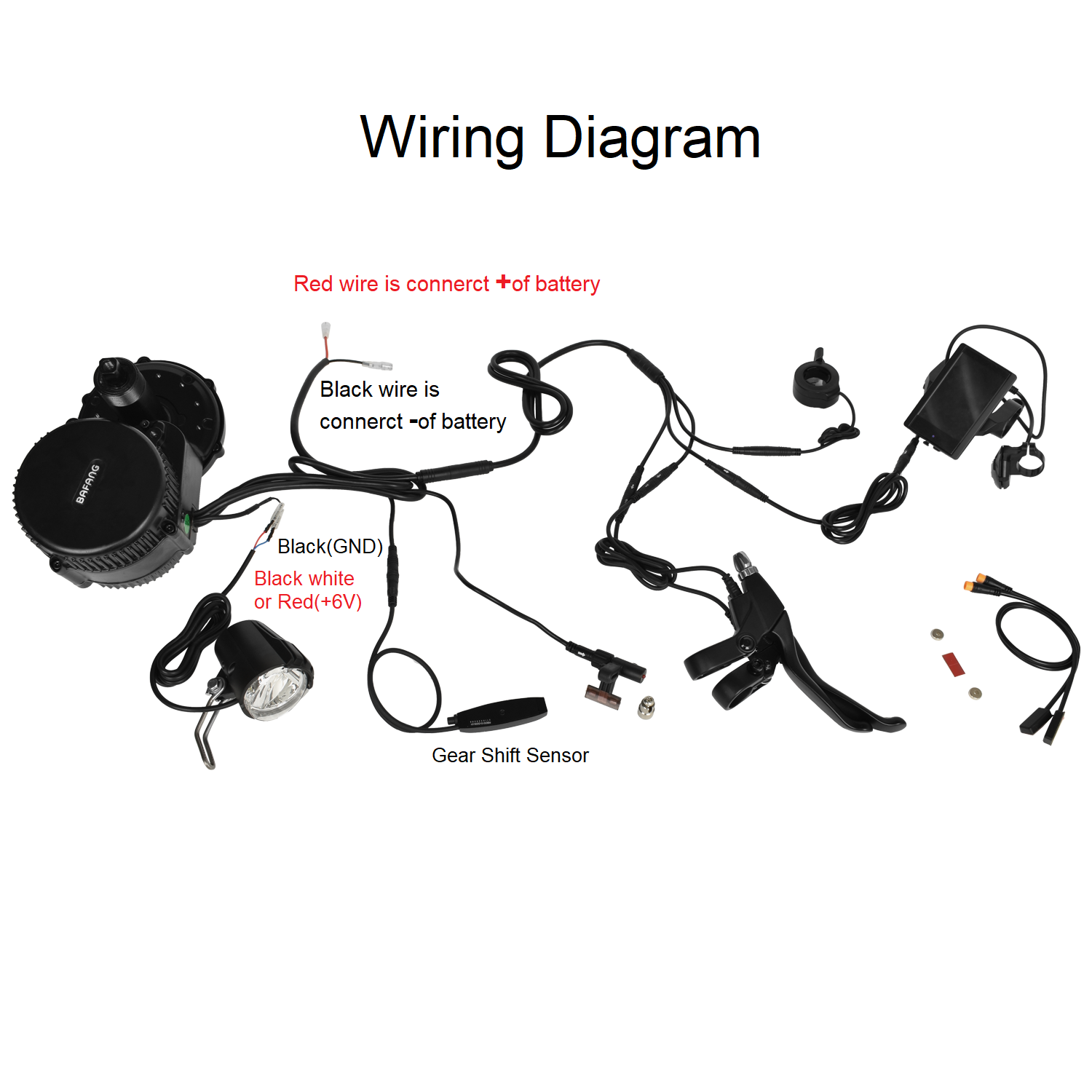

1.It's the newest version has two plugs for gear shift sensor and 6V light.

 2.15A upgraded IRFB3077 mosfets controller

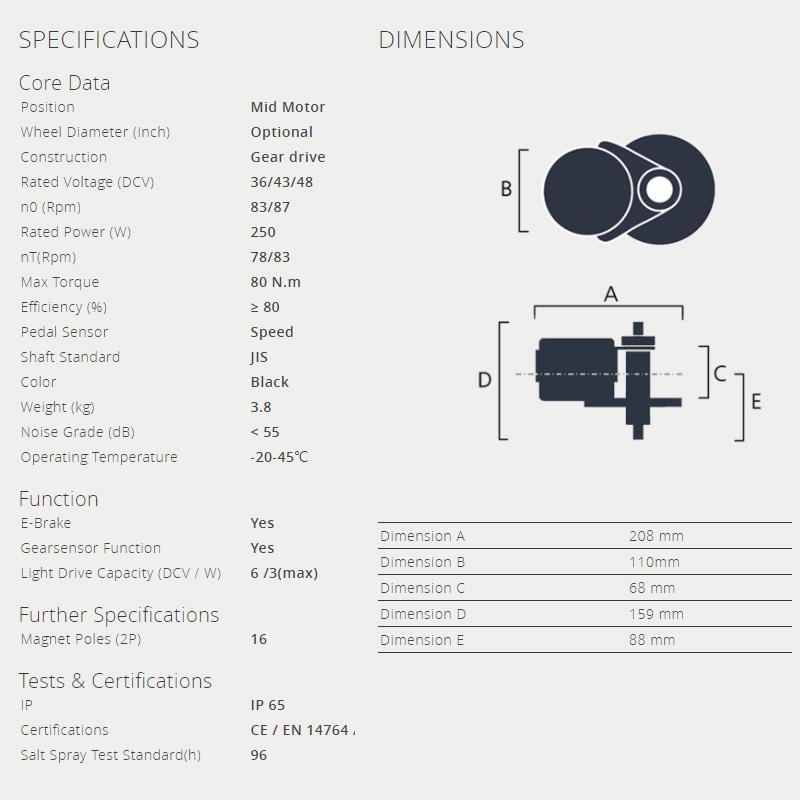

Specification:

Core Data
Position: Mid Motor
Construction: Geared Motor
Nominal Voltage: 36V
Rated Power: 250w
RPM: 78-83
Max Torque:80N.m
Efficiency: 80%
PAS SENSOR: Speed sensor
Shaft Standard: JIS
Mounting Parameters
Weight:3.8kg
Function
E-Brake:Yes
Gearsensor Function:Yes
Light Drive Capacity(DCV/W):6/3(max)
Further Specifications
Cadence (Pulses/Cycle):N/A
Reduction Ratio: 1:21.9
Magnet Poles(2p):16
Noise: <55dB
Hall Sensor: optional
Connector: Waterproor
Tests & Certifications
IP-Code:IP 65
Cerifications: CE /UL / ROHS EN 14764

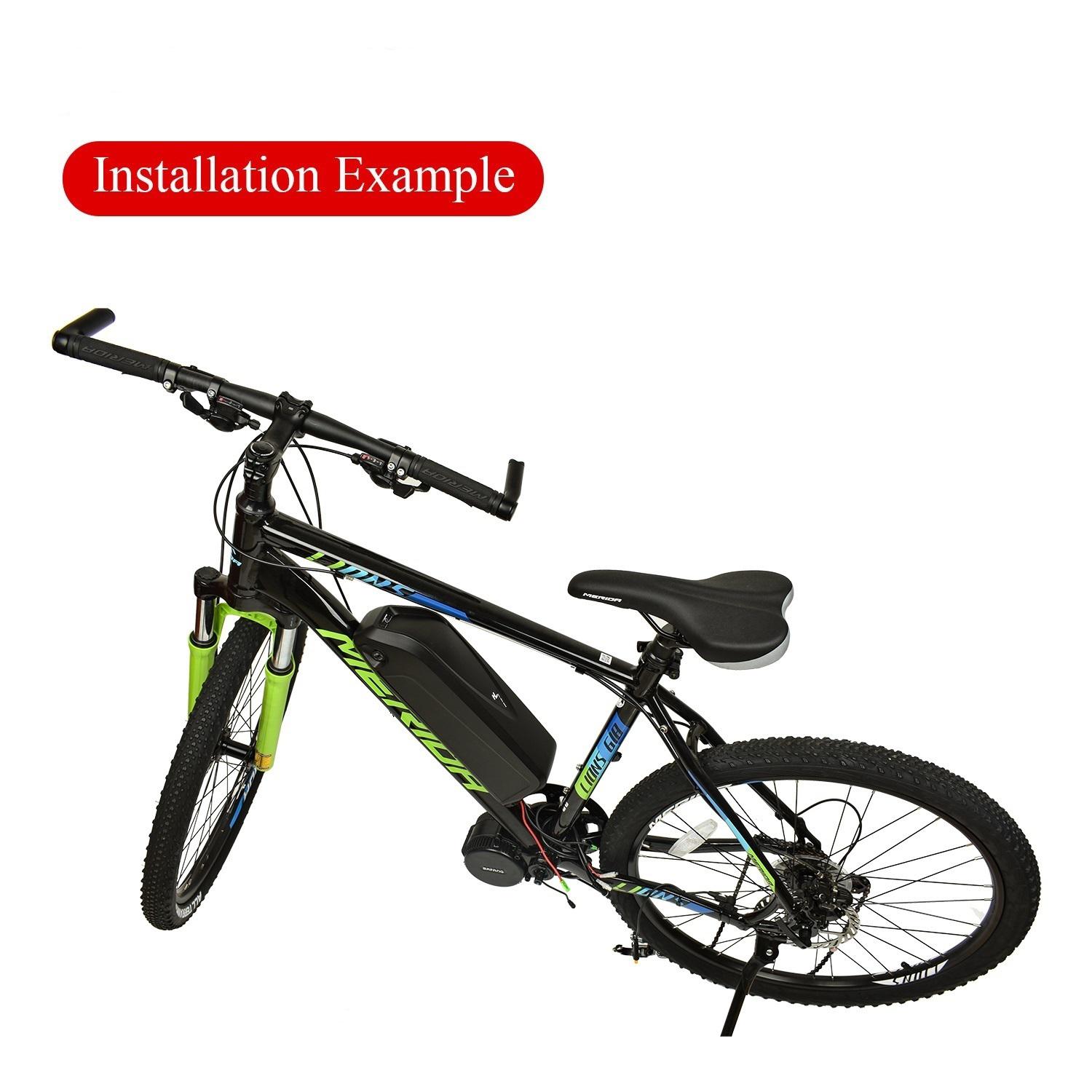

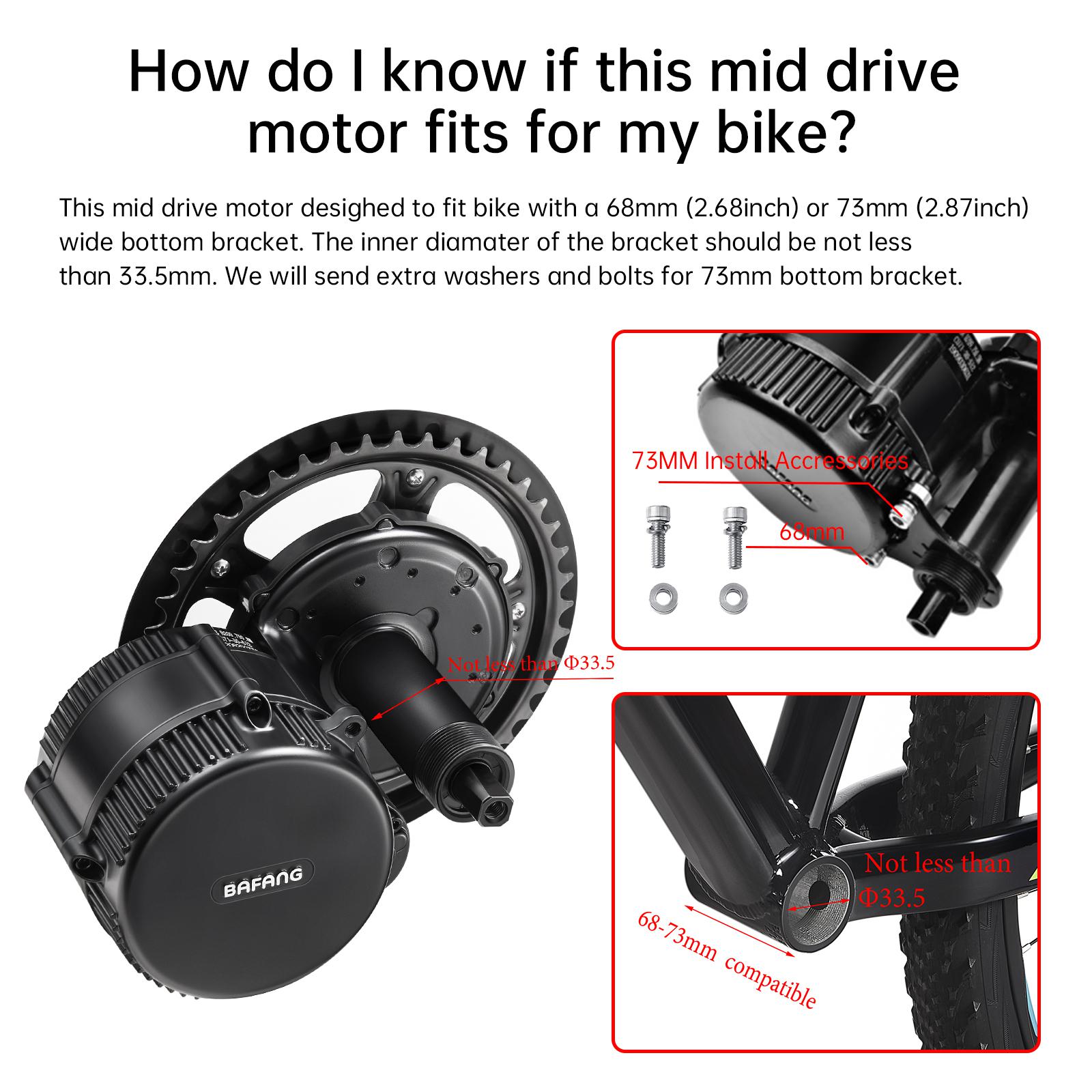

How do I know if this mid drive motor fits for my bike?

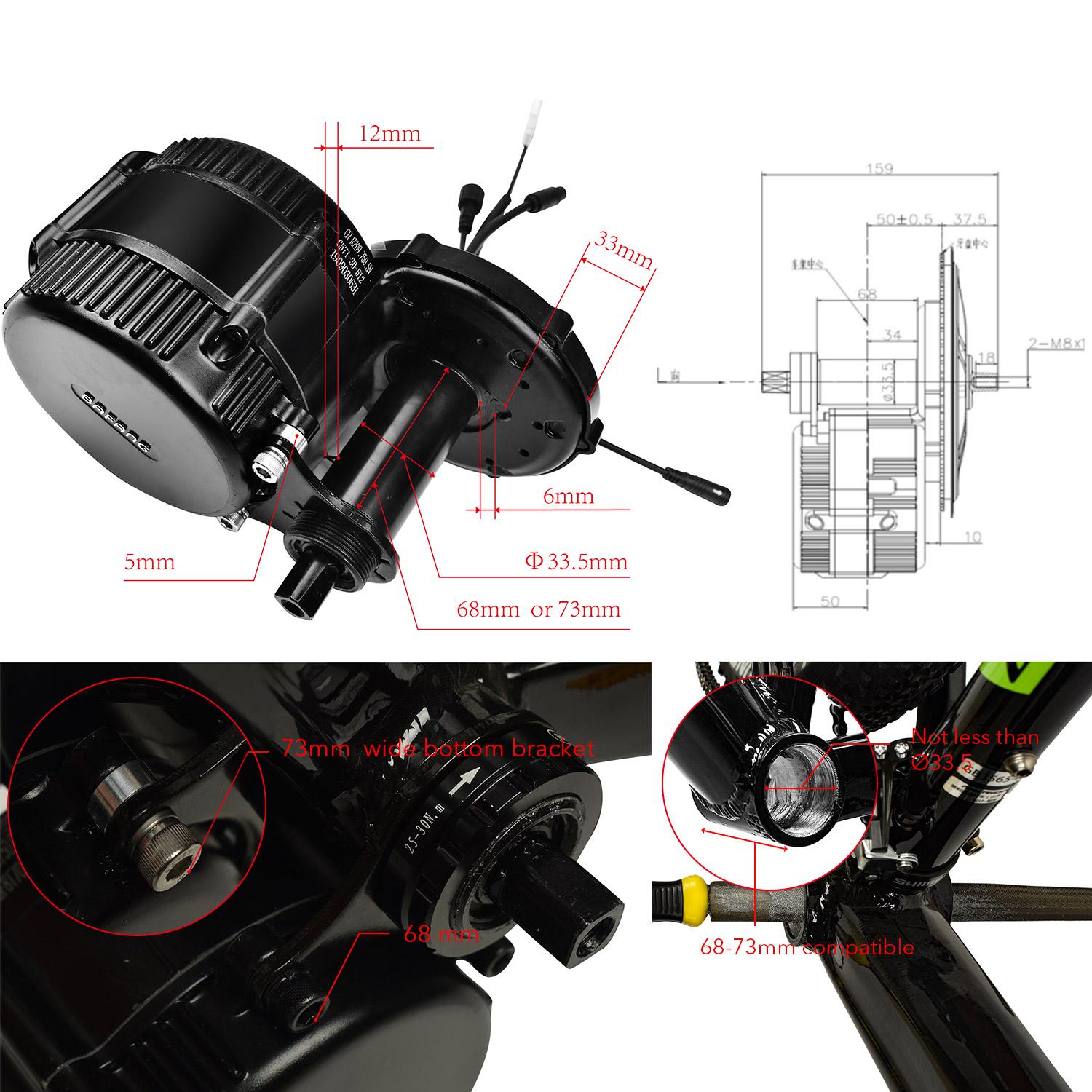

This mid drive motor desighed to fit bike with a 68mm (2.68inch) or 73mm (2.87inch) wide bottom bracket. The inner diamater of the bracket should be not less than 33.5mm. We will send extra washers and bolts for 73mm bottom bracket.

How to choose the brake lever or hydraulic brake sensor?

The kit will work with or without the brake sensors plugged in.

The Bafang kit does not come with brake sensors, you can select the brake levers option made for standard cable actuated brakes.

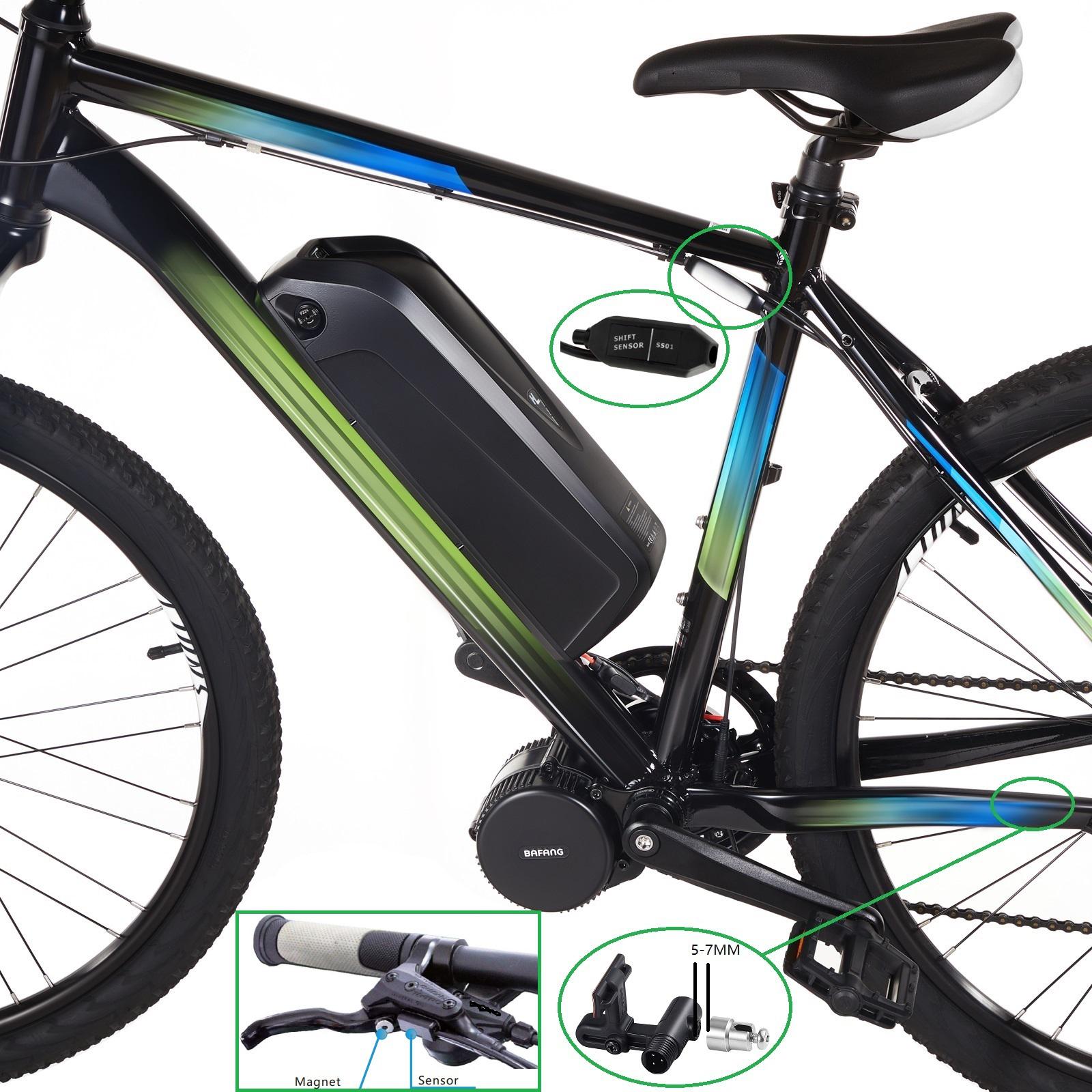

You also have the option of getting magnet sensors which allows you to adapt your existing brakes.  This will help with users who have hydraulic brakes the sensors are not compatible with.

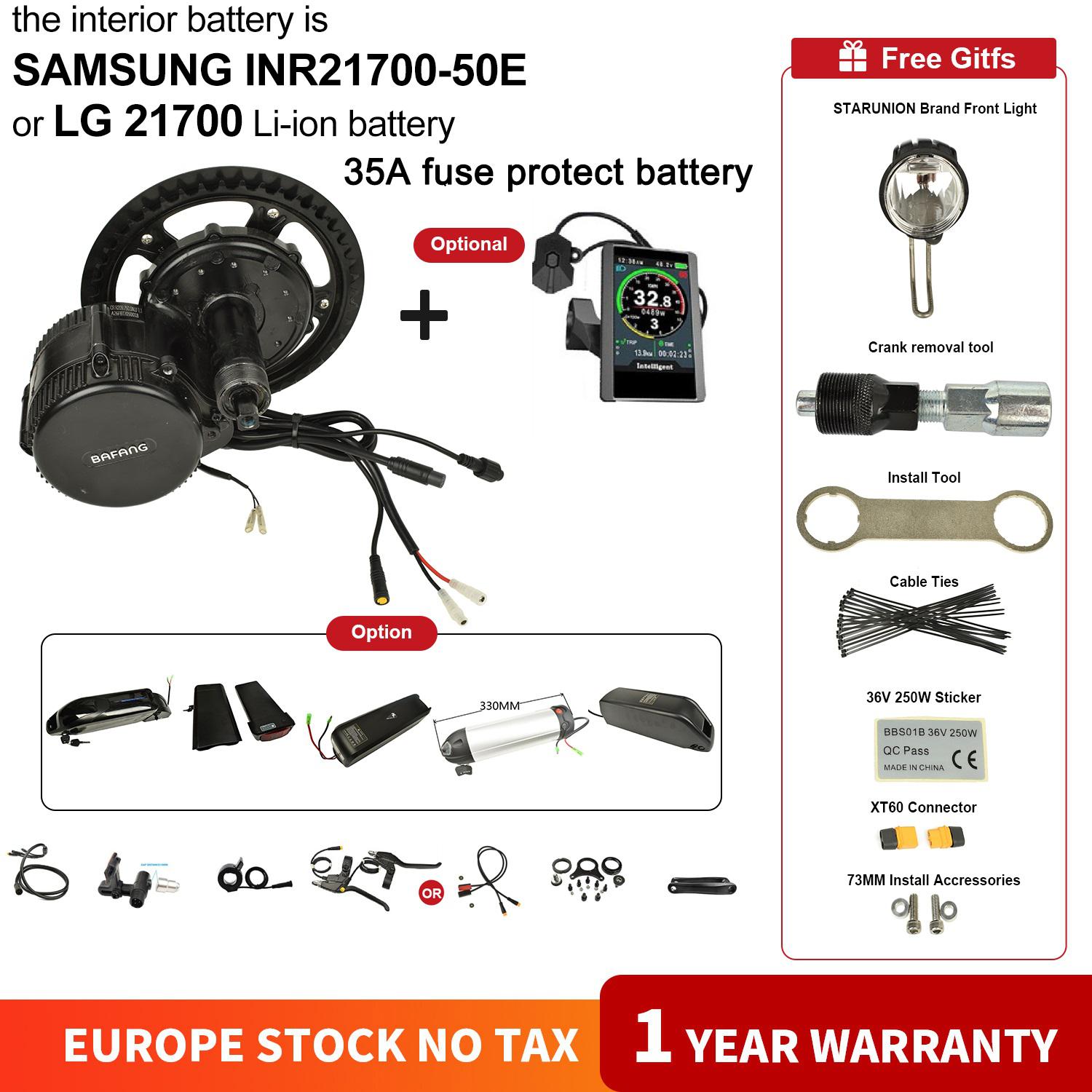

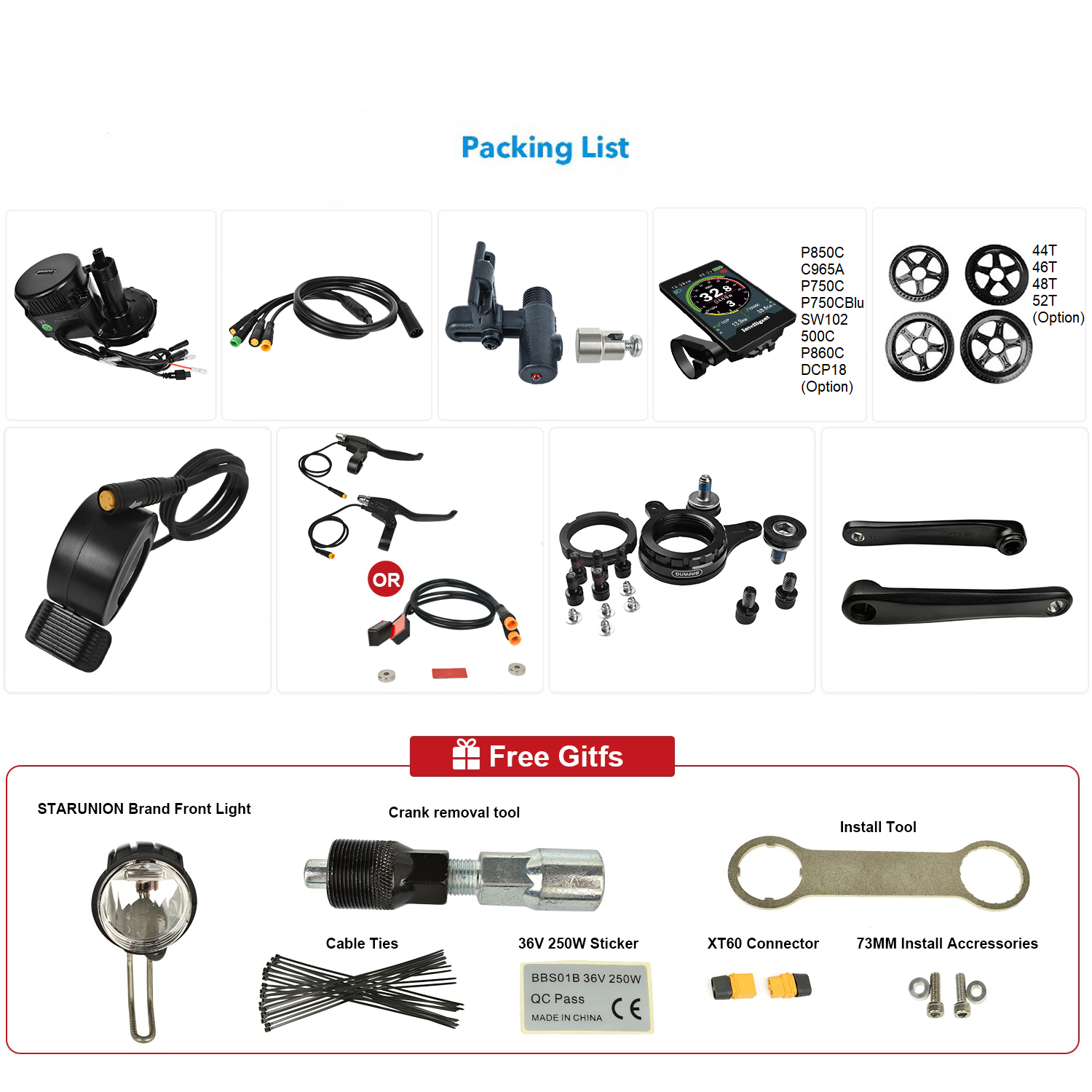

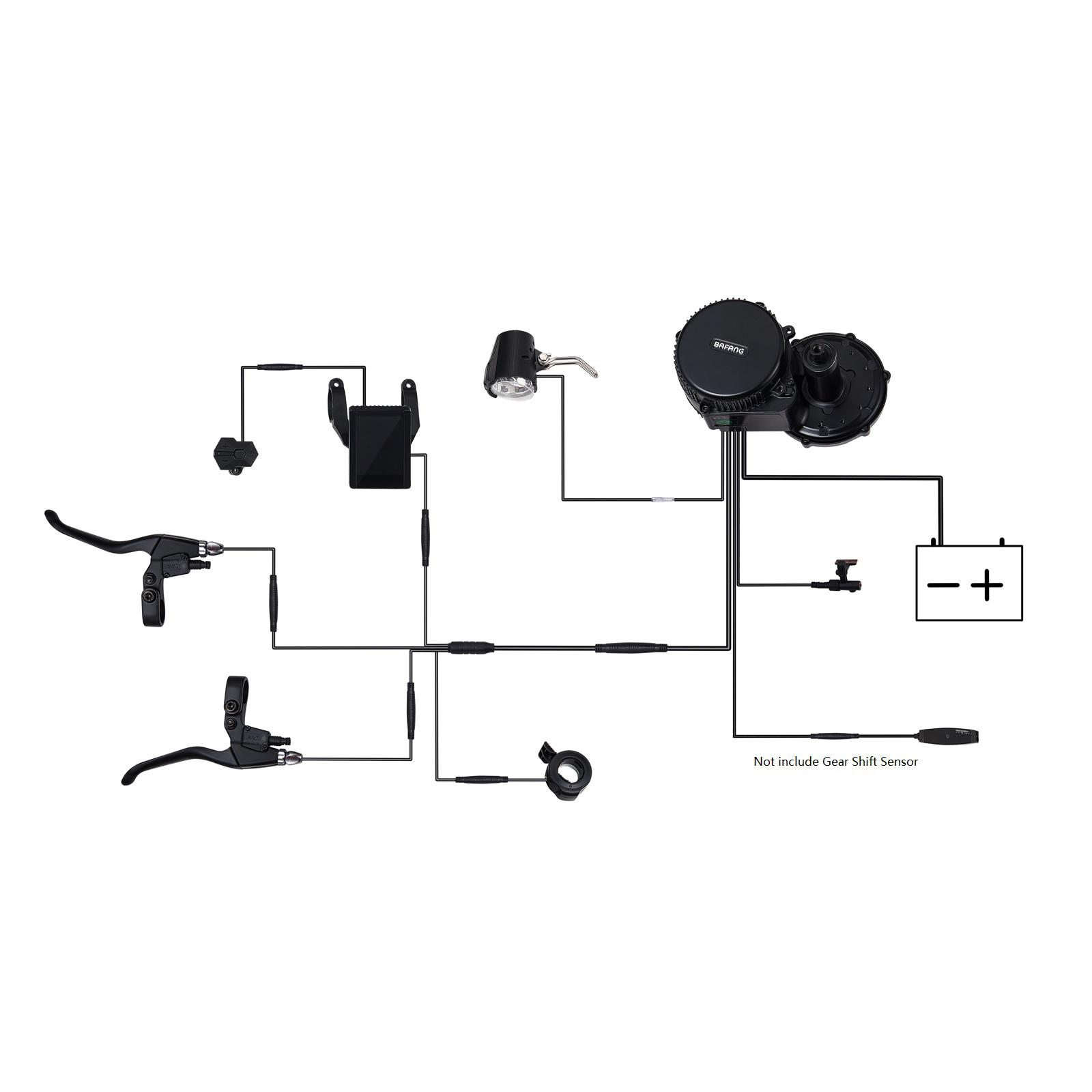

Packaging includes:

1*Bafang mid drive motor 15A controller (built into drive system) with upgraded 3077 mosfets Hot rod programmed for ultimate performance

1Pair*Brake lever or hydraulic brake sensor opition

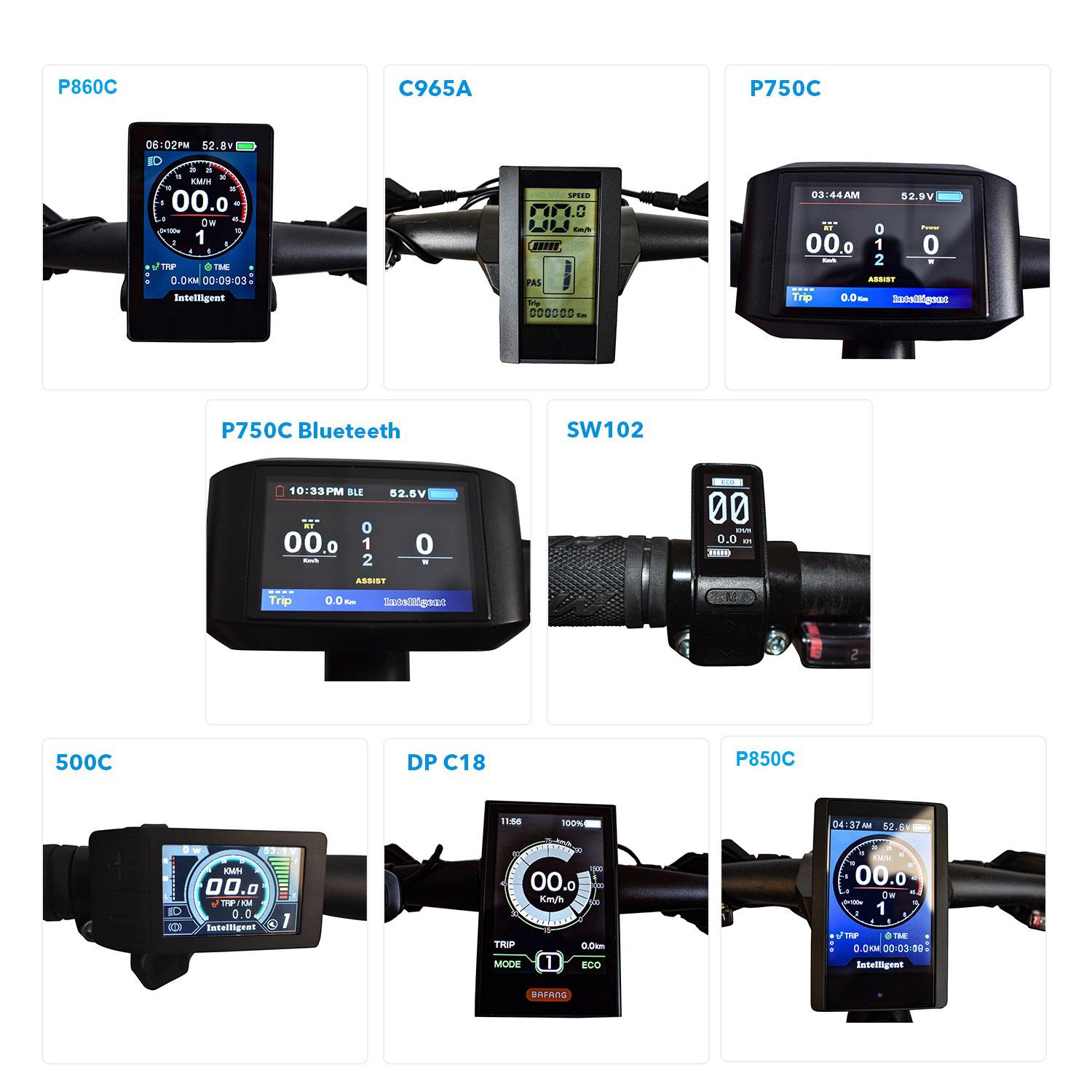

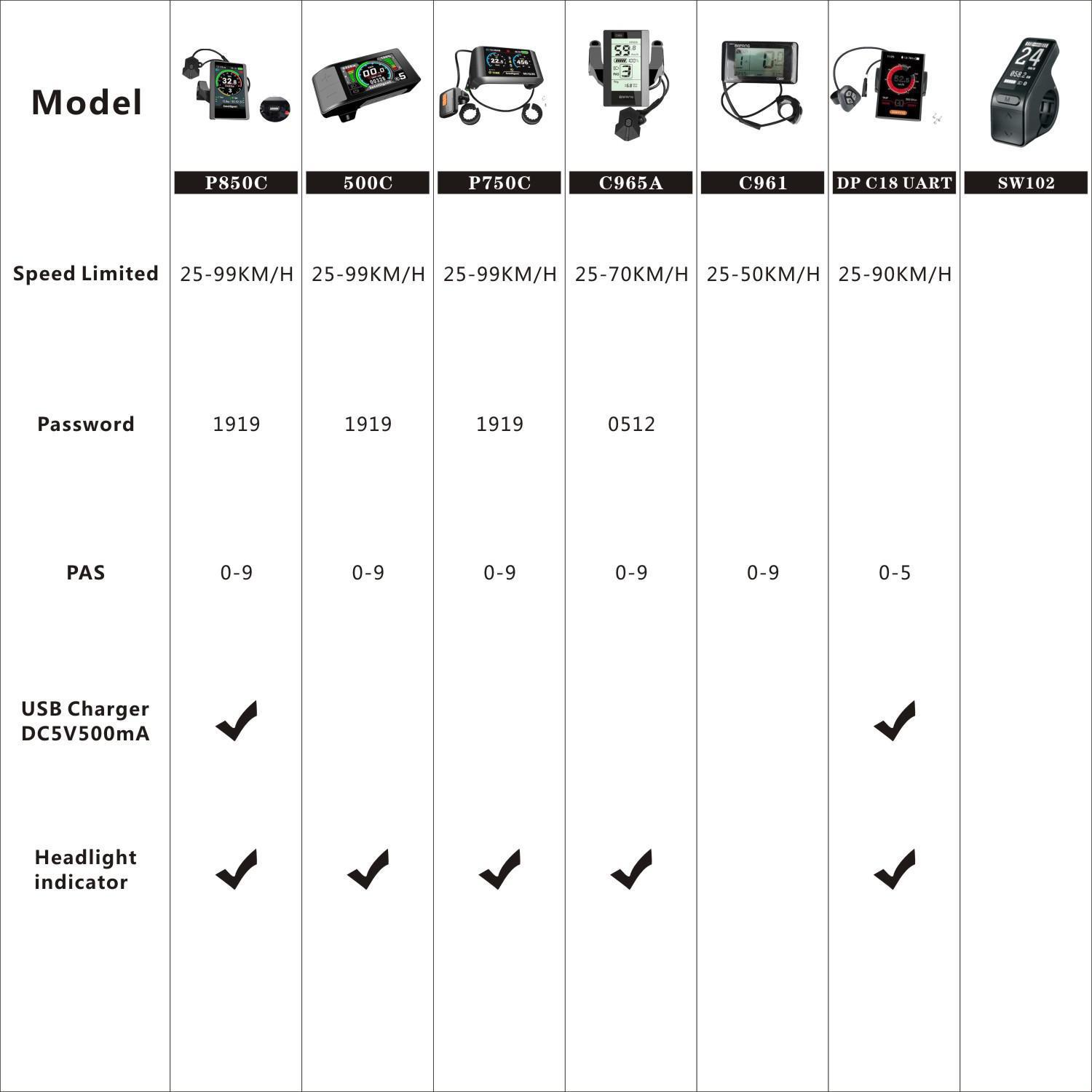

LCD Display(C965A/colorful 500C/colorful P850C/colorful P860C/colorful P750C/P750 Blueteeth/DCP 18/SW102/without LCD display opition)

1Pair*Chainwheel 44T/46T/48T/52T opition

1 Set * Throttle

1 Pair * Crank

1 Set * Speed Sensor

1 * 4 in 1 Cable

1 * Accessories

Warranty:
1 year (based on the purchase data): Free repair,buyer pay for return postage,
 resend postage free,buyer should return to United Kingdom or Germany or China for repair.
