Bafang BBS02B 48V 750W Mid Drive Motor 8fun Bicycle Electric eBike Conversion Kit mid drive ebike kit new version

SKU: BF-48X750-44T   324US$

SKU:BF-48X750-44T

Stock:888

Item location: China

Shipping: Calculate by weight


you don't need register on our website, just check out with PayPal
Express Checkout
Price
US$
Quantity

Free shipping:price include delivery fee
From Pswpower

If you from Europe country,and choose ship from Germany warehouse. free shipping,NO taxes,Taxes is paid by us, also we will send it by DHL with tracking number,delivery time about 4-6 working day.
United Kingdom,
Belgium, Luxembourg, Slovakia, Czech, Hungary, Austria, Netherlands, Denmark, France, Germany, England, Ireland, Italy, Poland, Slovenia, Spain, Finland, Latvia, Lithuania, Sweden, Bulgaria, Estonia, Greece, Monaco, Portugal, Romania
Follow country need add US$25
Andorra, Croatia, Iceland,  Liechtenstein, Macedonia, Norway, Switzerland, UKRAINE, Vatican City, San Marino, Malta, Cyprus
Follow country need add US$30
Kazakhstan,Turkey
If you from Norway or Switzerland,we will declare value US$65 for motor,you should pay second time taxes.

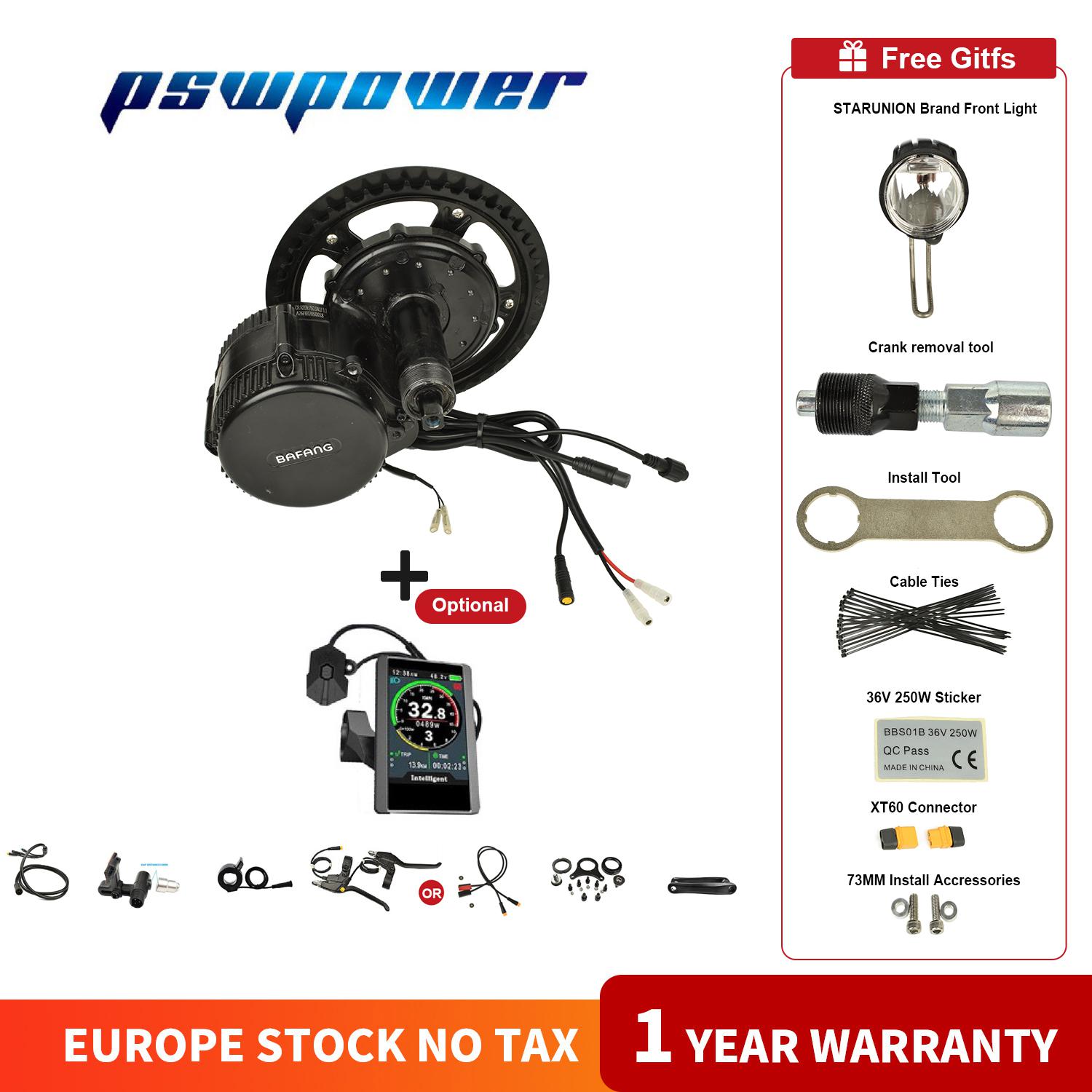

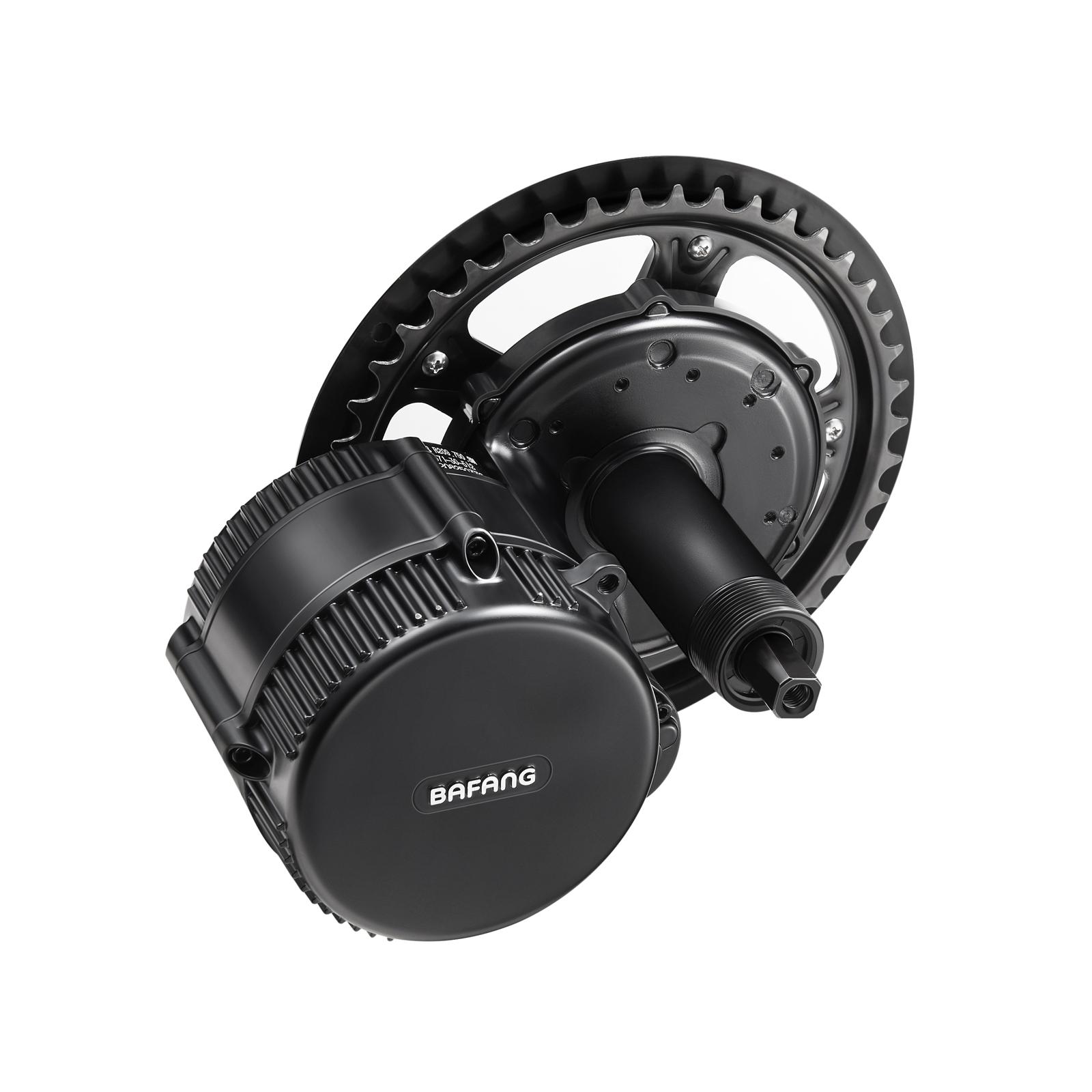

48V 750W Bafang Mid Drive Motor

Feature:

1.It's the newest version has two plugs for gear shift sensor and 6V light.

 2. 25 amp upgraded IRFB3077 mosfets controller (up to 1300 watt with 52 volt battery)



Specification:

Core Data
Position: Mid Motor
Construction: Geared Motor
Nominal Voltage: 48V
Rated Power: 750w
RPM: 130-150
Max Torque: 160 N.m
Efficiency: 85%
PAS SENSOR: Speed sensor
Shaft Standard: JIS
Mounting Parameters
Weight: 4.8 kg
Function
E-Brake:Yes
Gearsensor Function:Yes
Light Drive Capacity(DCV/W):6/3(max)
Further Specifications
Cadence (Pulses/Cycle):N/A
Reduction Ratio: 1:21.9
Magnet Poles:8
Noise: <55dB
Hall Sensor: optional
Connector: Waterproor
Tests & Certifications
IP-Code:IP 65
Cerifications: CE /UL / ROHS EN 14764

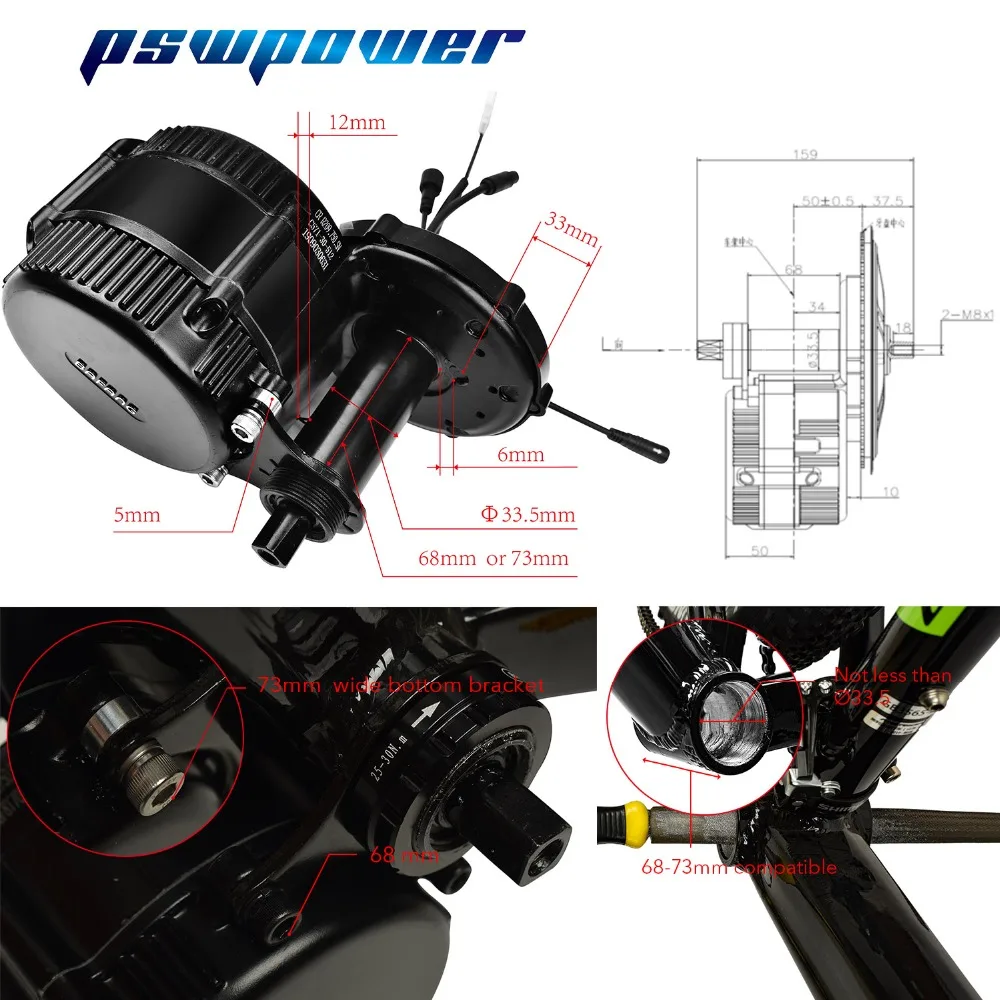

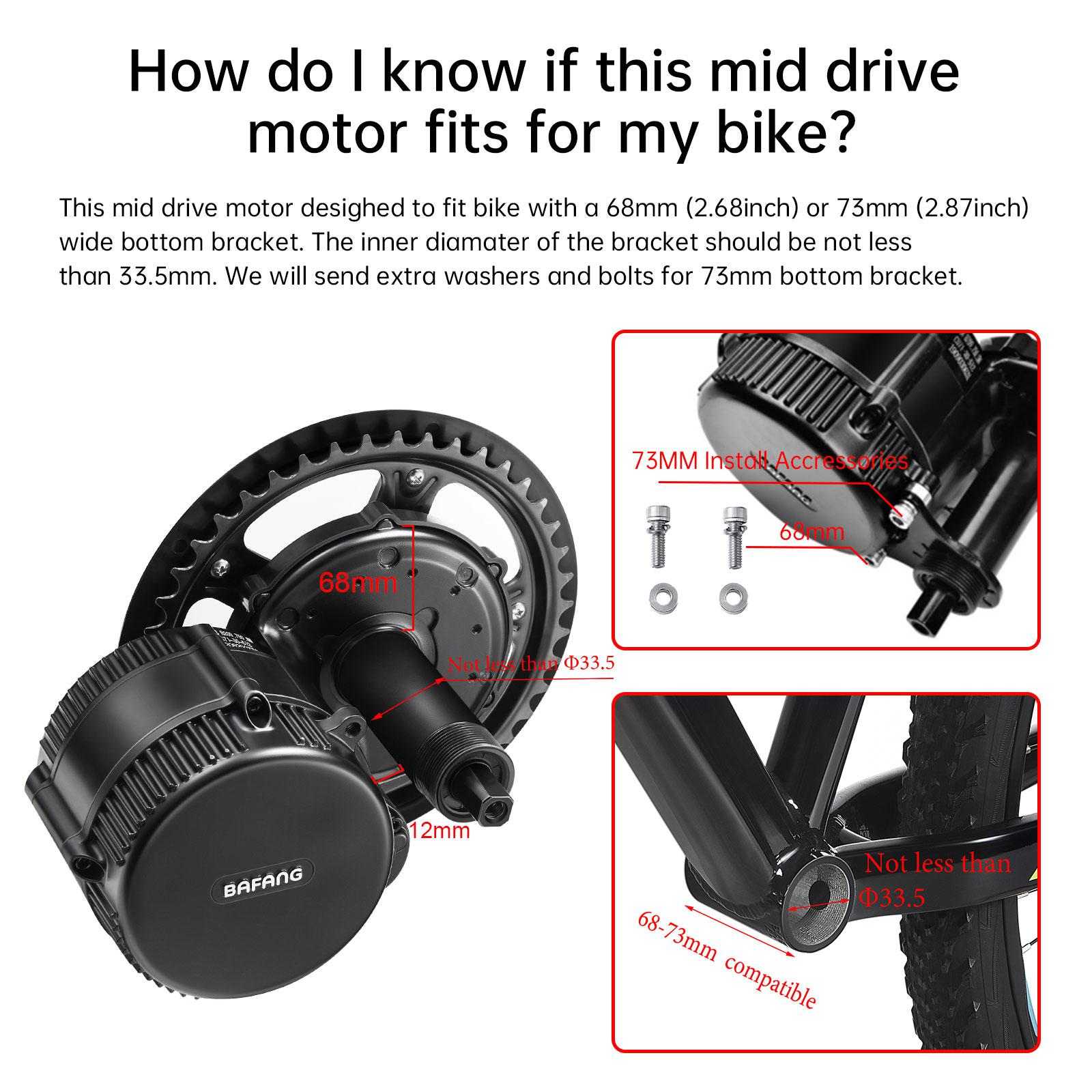

How do I know if this mid drive motor fits for my bike?

This mid drive motor desighed to fit bike with a 68mm (2.68inch) or 73mm (2.87inch) wide bottom bracket. The inner diamater of the bracket should be not less than 33.5mm. We will send extra washers and bolts for 73mm bottom bracket.

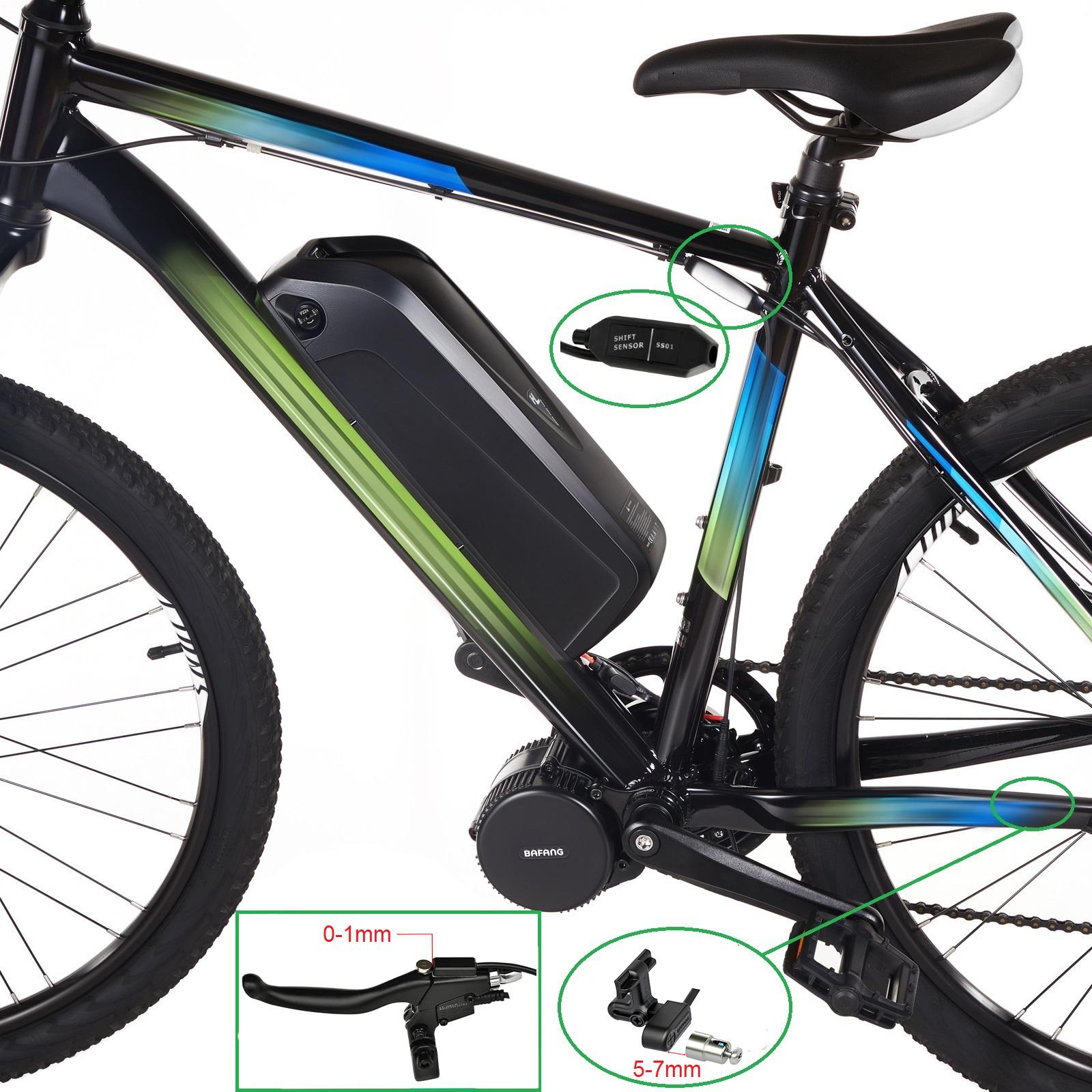

How to choose the brake lever or hydraulic brake sensor?

The kit will work with or without the brake sensors plugged in.

The Bafang kit does not come with brake sensors, you can select the brake levers option made for standard cable actuated brakes.

You also have the option of getting magnet sensors which allows you to adapt your existing brakes.  This will help with users who have hydraulic brakes the sensors are not compatible with.

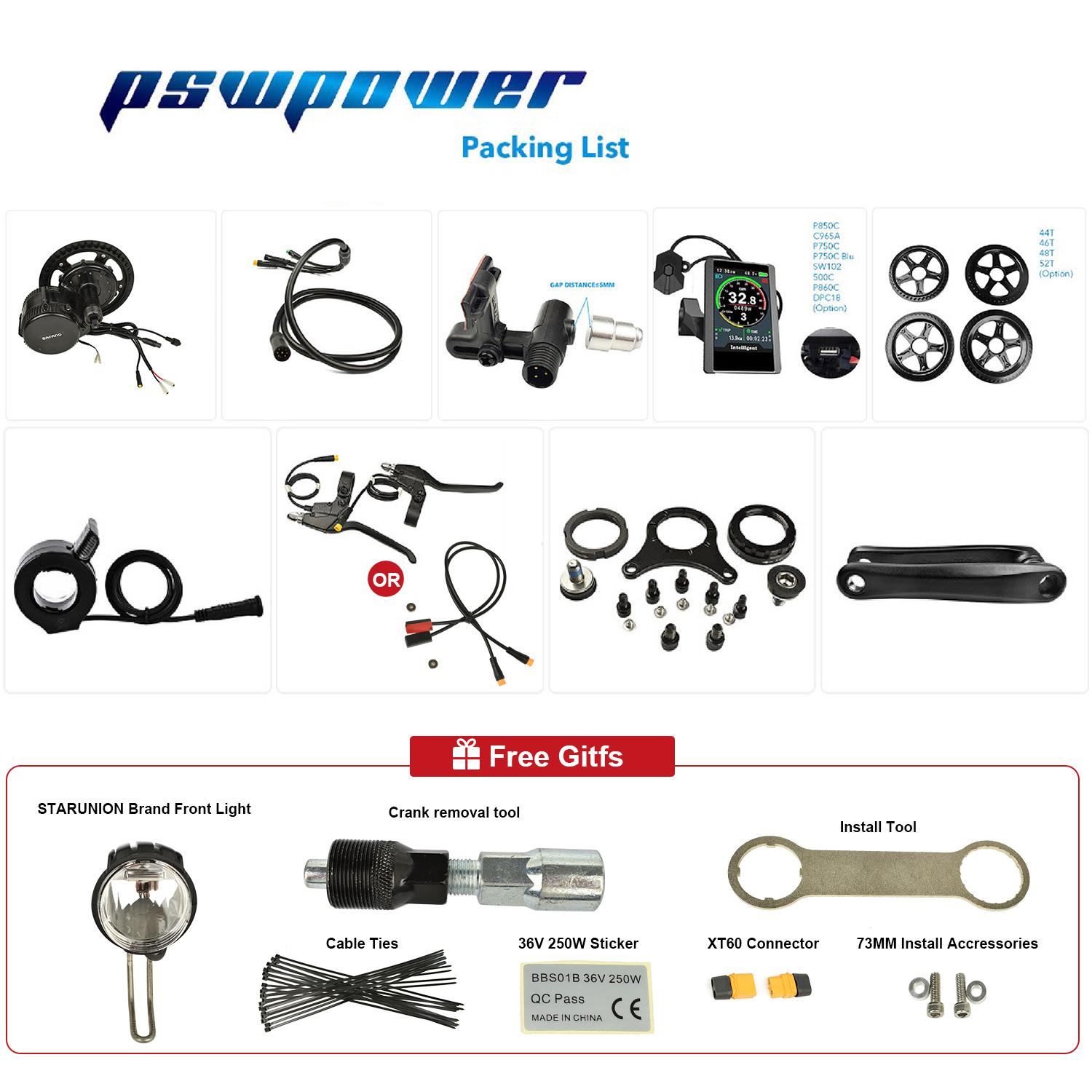

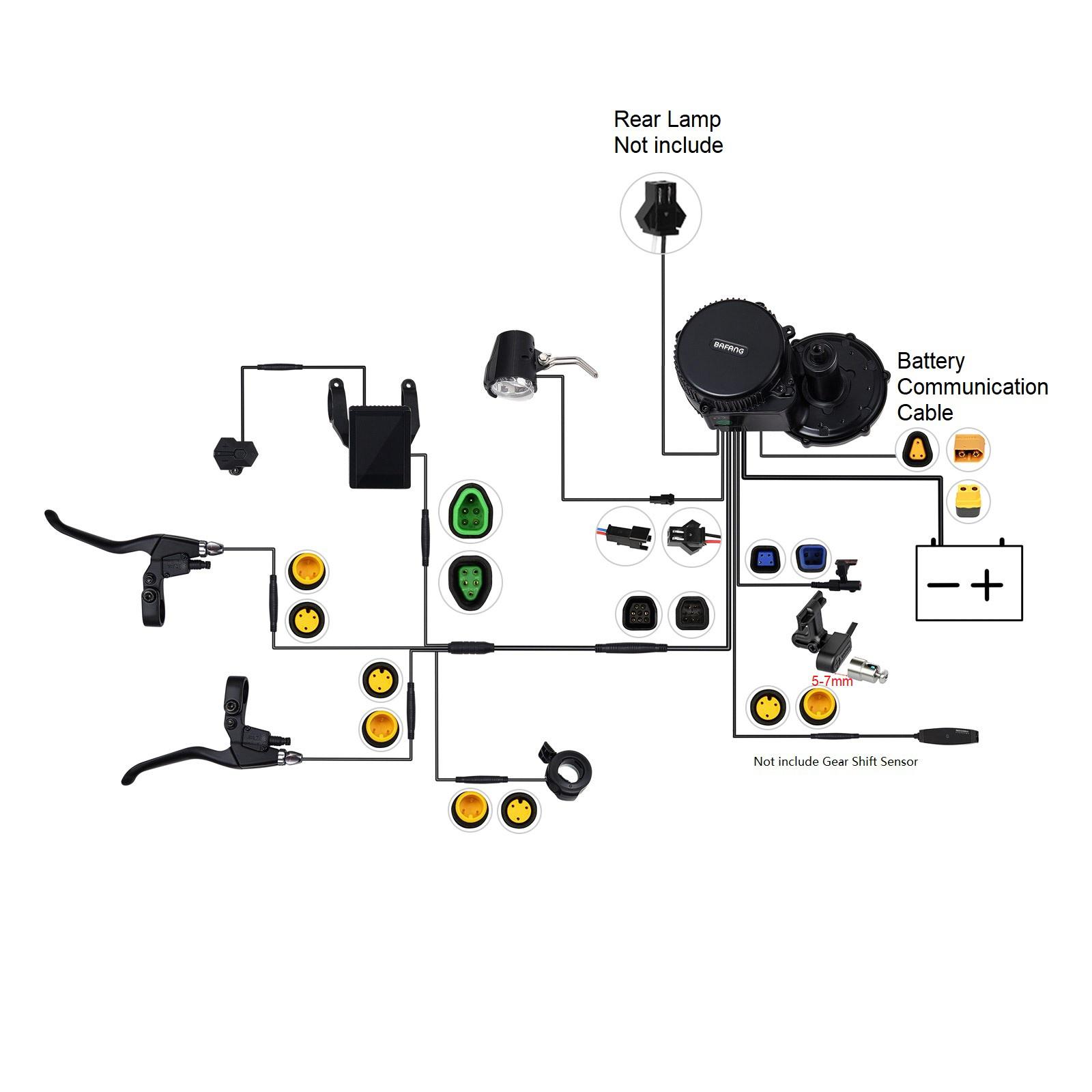

Packaging includes:

1*Bafang mid drive motor 25 amp controller (built into drive system) with upgraded 3077 mosfets Hot rod programmed for ultimate performance

1Pair*Brake lever or hydraulic brake sensor opition

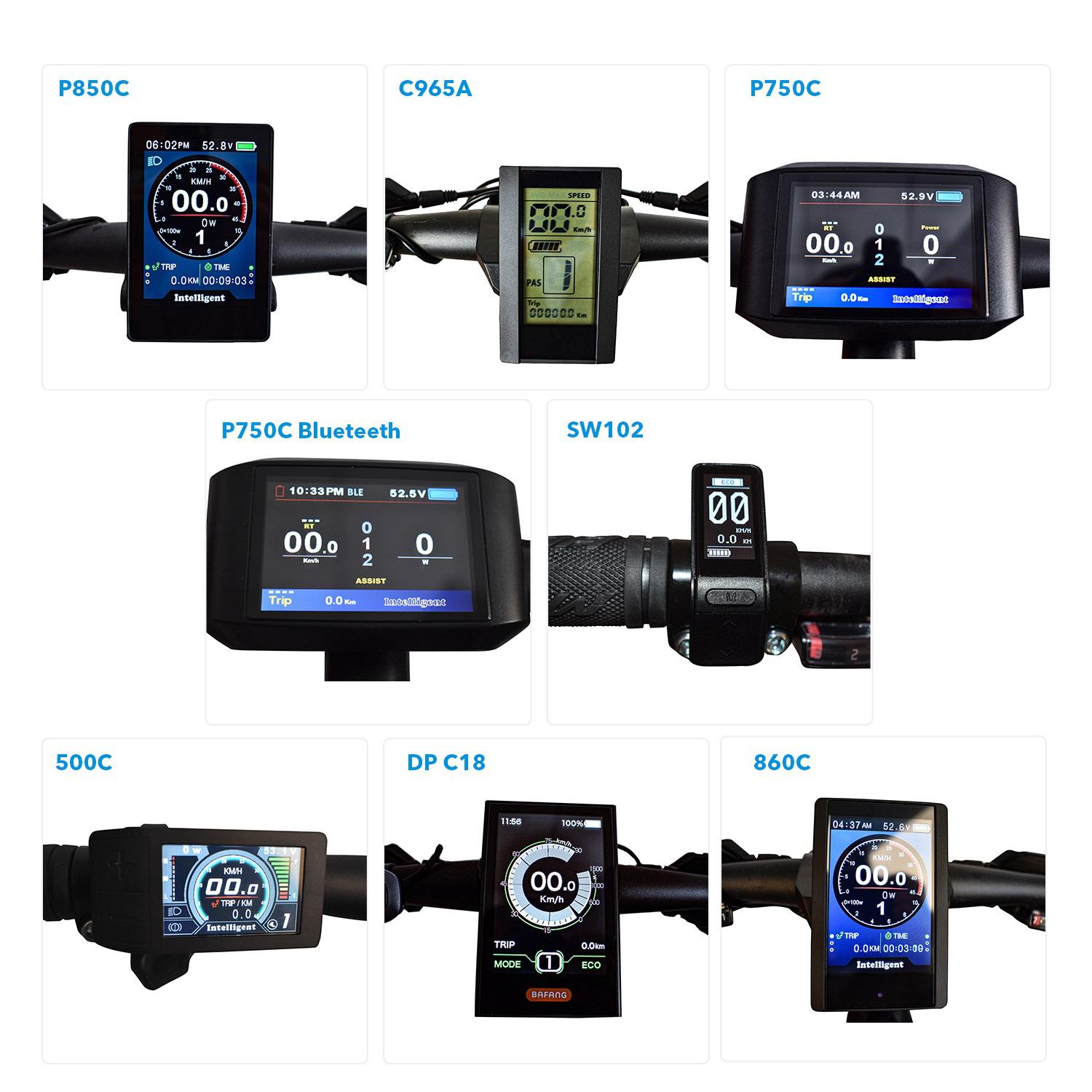

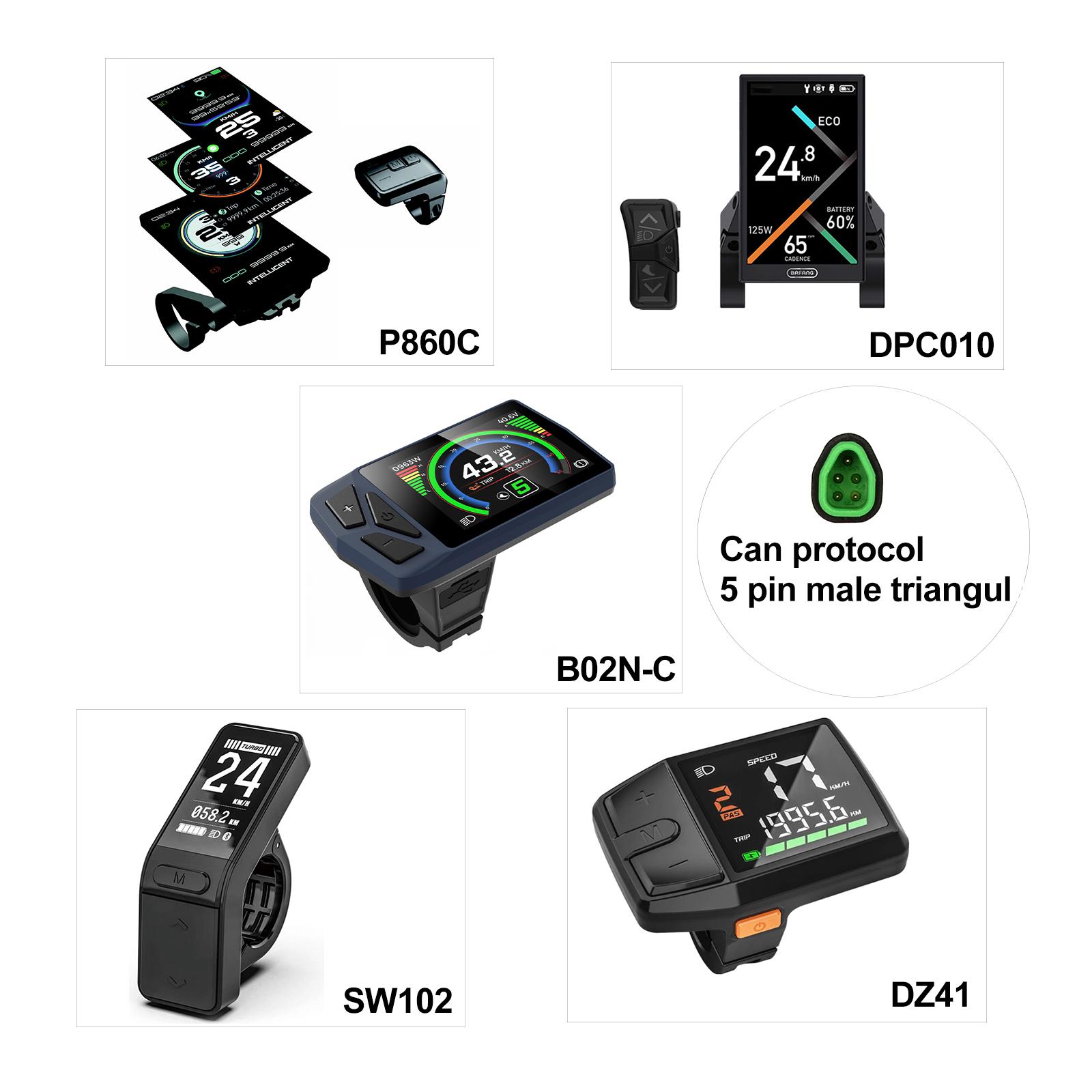

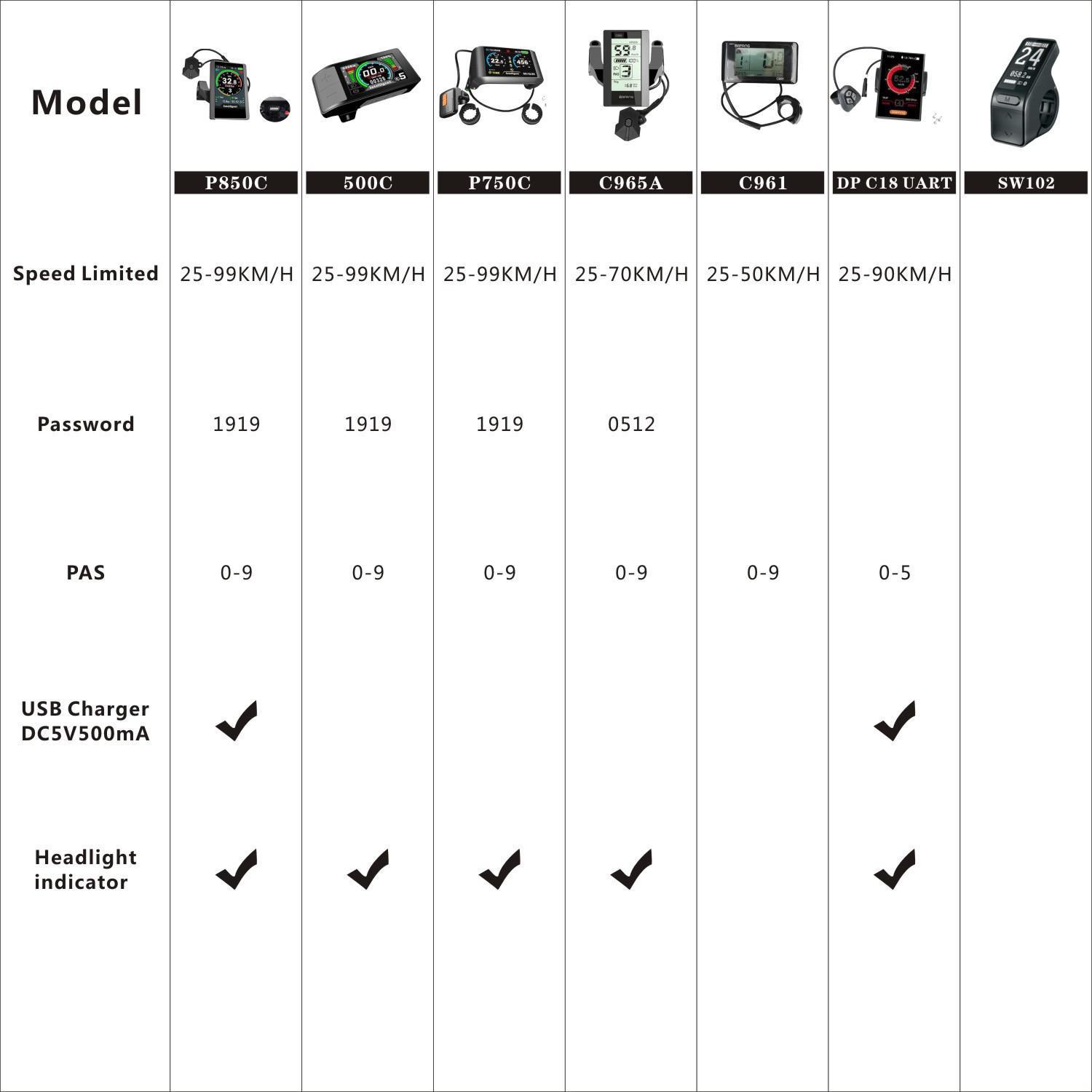

LCD Display(C965A/colorful 500C/colorful P850C/colorful P860C/colorful P750C/P750 Blueteeth/DCP 18/SW102/without LCD display opition)

1Pair*Chainwheel 44T/46T/48T/52T opition

1 Set * Throttle

1 Pair * Crank

1 Set * Speed Sensor

1 * 4 in 1 Cable

1 * Accessories

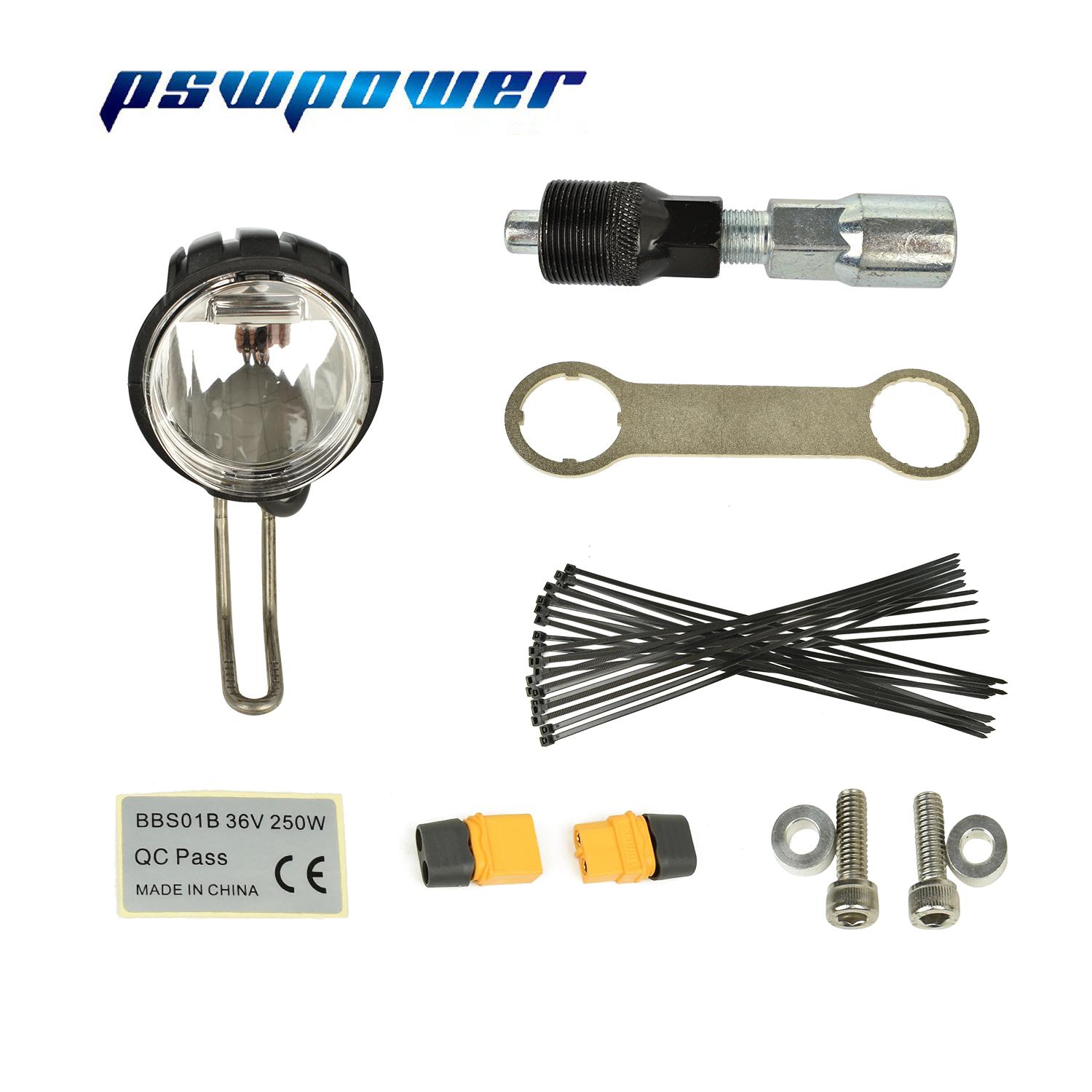

Gifts:STARUNION Brand Front Light,Crank removal tool,Install Tool,Cable Ties,36V 250W Sticker XT60 Connector, 73MM Install Accressories.



HAILONG G70 48V 12.5AH Specification:
The battery pack fits 48V 250W/350W/500W/750W motor, can't working on 1000W motor, if your motor power over 750W, we can't provide warranty for this battery
1. Rated capacity: 12.5AH
2. Voltage: 48V
3. Charging Voltage: 54.6V
4. Discharge cutoff voltage: 36.4V
5. 5P13S Li-ion 2.5Ah 65 pcs 18650 battery cells (china battery cells)
6. Continuous discharge current: 30A
7. Pulse/Max discharge current 60A
8. Max charging current : 5A
9. Charging temperature: 0~45°C
10. Dischargeing temperature: -20~55 °C
11.Operating voltage:36.4V~54.6V
12.Diamesion: 90.3*109.4*367.4mm
13.Weight of battery pack About kg
Packing list:
1 pcs 48V 12.5h hailong G70 battery pack
1 pcs 2A charger
it has no usb power output

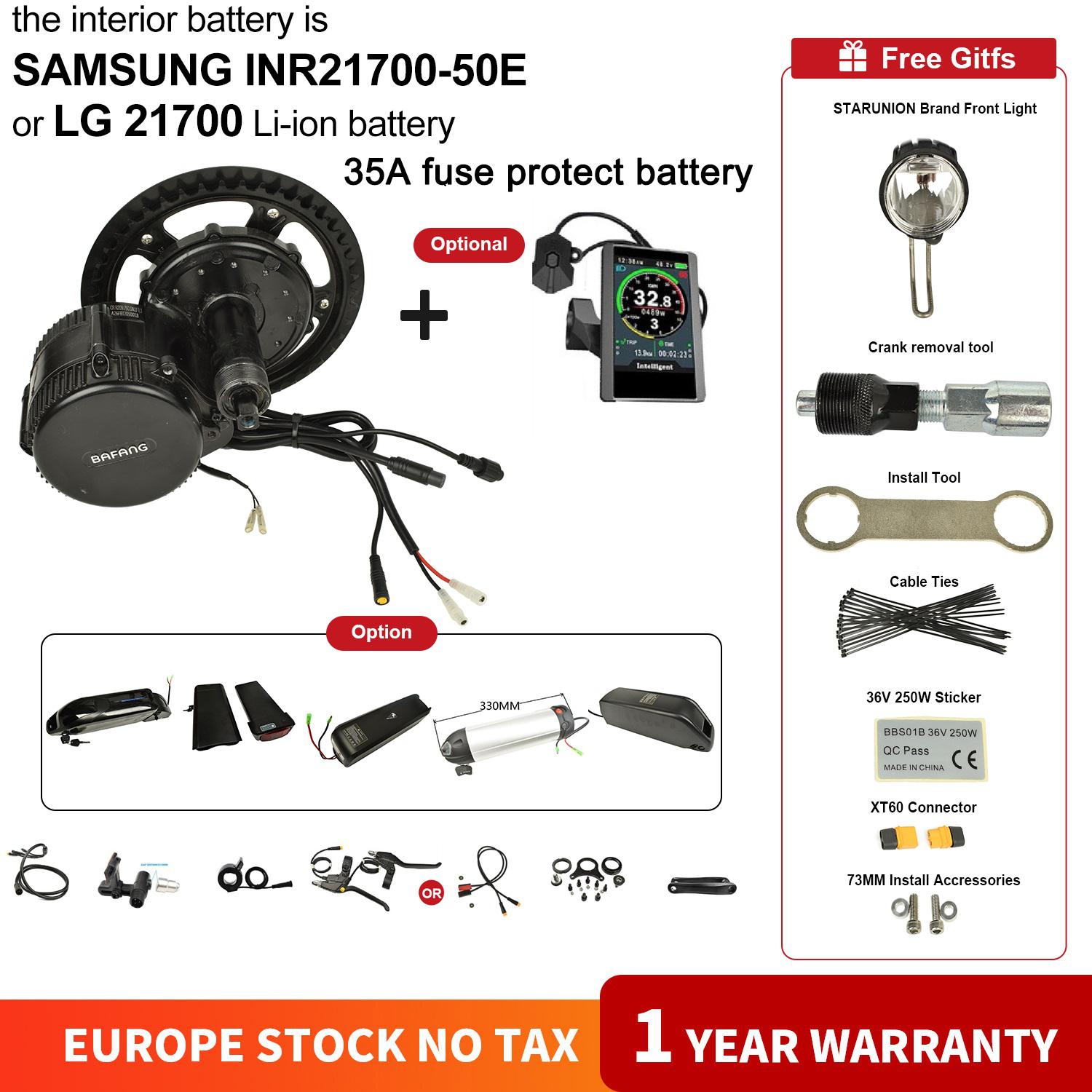

HAILONG-MAX 48V 20AH Specification: (the interior battery is SAMSUNG INR21700-50E 21700 Li-ion battery)
 The battery pack fits 48V 0-1000W motor, can't working on  1500W motor, if your motor power over 1000W , we can't provide warranty for this battery
1. Rated capacity: 20AH
2. Voltage: 48V
3. Charging Voltage: 54.6V
4. Discharge cutoff voltage: 36.4V
5.4P13S Li-ion 5Ah 21700 52pcs battery cells (the interior battery is SAMSUNG INR21700-50E 21700 Li-ion battery)
6. Continuous discharge current: 30A
7. Pulse/Max discharge current 50A
8. Max charging current : 5A
9. Charging temperature: 0~45°C
10. Dischargeing temperature: -20~55 °C
11.Operating voltage:36.4V~54.6V
12.Diamesion: 367*127*90mm
13.Weight of battery pack About kg
Note: Please turn on the power switch when you charging this battery pack.
The battery pack fits 250W / 350W / 500W motor and 48 V 750W 48V 1000W motor
Packing list:
1 pcs 48V 20AH Hailong Max brand INR21700-50E 21700 Cells ebike battery pack (the interior battery is INR21700-50E 21700 SAMSUNG Li-ion battery)
1 pcs 3A charger
It has no usb power output

120W Lithium Ion Charger Specification
Input Voltage: 100-240V
Output Voltage: 54.6V (for 13 series Lithium Ion battery use)
Output Current: 2A/3A
Charging Mode: CC-CV
Intelligent Charger
Super Powerful Charger 2A/3A
Weight: 0.65g


Warranty:

1 year(based on the purchase data): Free repair,buyer pay for return postage and resend postage, buyer should return to Germany for repair, don’t need return to china.


Payment:

The payment isn't included the remote fee. There will have extra cost if your address is belong to remote areas.



Return & Refund:
After receiving the item,buyer should start a return within 7 days.Return postage will be paid by buyer.The return items must be in original conditions never used.Buyer can not return to sender address,we will provide local return address to buyer.



Feedback:

Your satisfaction and positive feedback is very important for us, it will be very kind of you to leave us 5 stars feedback, if you have any problems, don`t hesitate tocontact us, we will do our best to serve with you.
