free shipping：price include delivery fee
If you from Europe country,and choose ship from Germany warehouse. free shipping,NO taxes,Taxes is paid by us, also we will send it by DHL with tracking number,delivery time about 4-6 working day.
Belgium, Luxembourg, Slovakia, Czech, Hungary, Austria, Netherlands, Denmark, France, Germany, England, Ireland, Italy, Poland, Slovenia, Spain, Finland, Latvia, Lithuania, Sweden, Bulgaria, Estonia, Greece, Monaco, Portugal, Romania
Follow country need add US$15
Andorra, Croatia, Iceland, Liechtenstein, Macedonia, Norway, Switzerland, UKRAINE, Vatican City, San Marino, Malta, Cyprus
Follow country need add US$30
If you from Norway or Switzerland,we will declare value US$65 for motor,you should pay second time taxes.
This Tongsheng/SFM mid drive motor with torque sensor is the cheapest and good torque sensor mid drive motor in china, you can feel the power from your foot to start the ebike,so you don't need use throttle to start the ebike

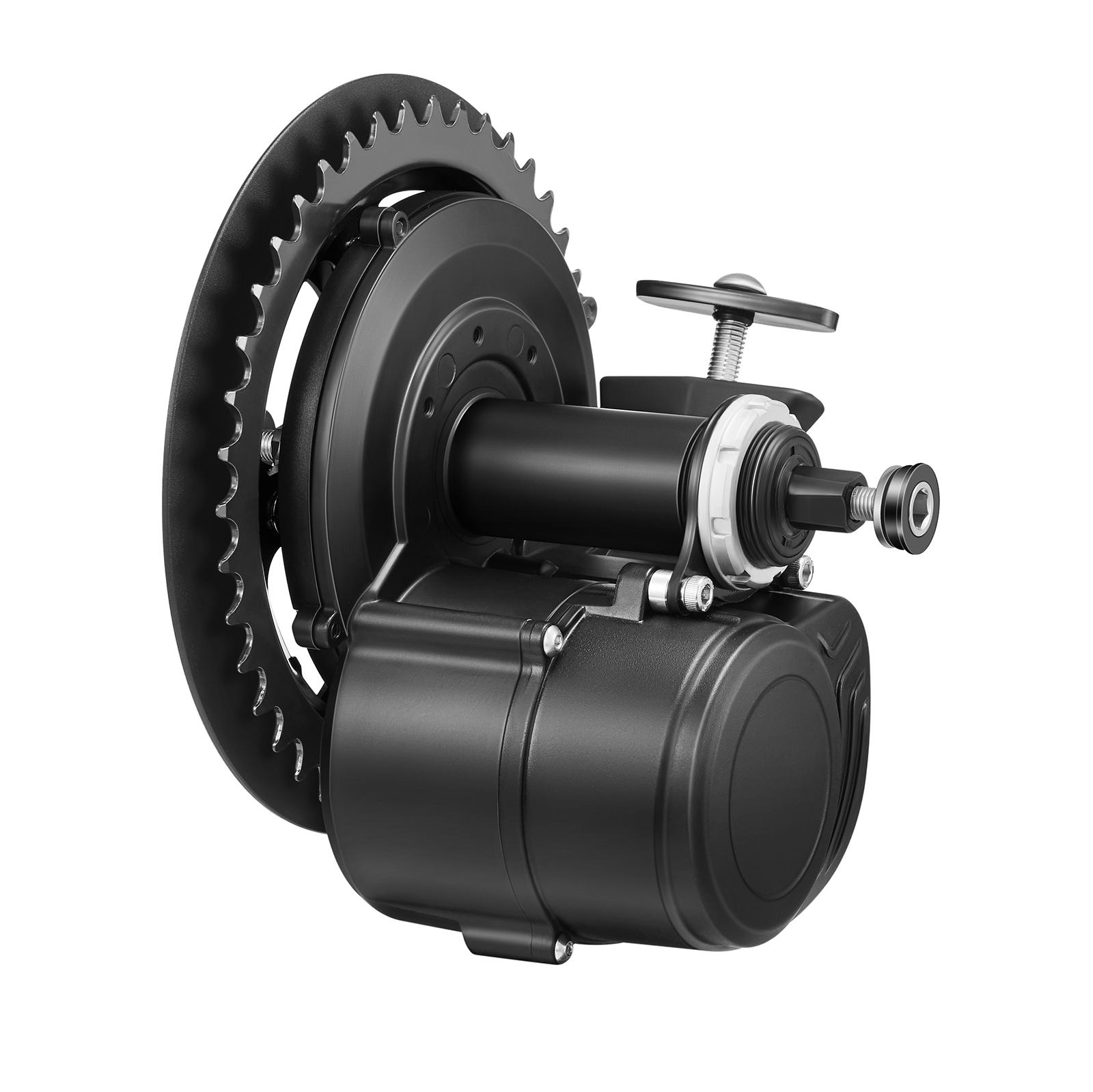

TSDZ2 electric bicycle central mid motor with torque sensor
Speed: 15Km/H-45Km/H top speed 45km/H
1. 48V500W /48V7500W 15A TSDZ2 mid drive motor with torque sensor,
2.No brake lever
3.Speed sensor with magnets
4:No thumb throttle
5.E-bus cable set(can compatible till 28inch bike)
6.Easy installtion as 8FUN center motor
7. 42T chainwheel
8.VLCD5 or XH18-LCD
Without brand on the motor
9.Special speed sensors, which are more robust, and include a split 'Y' adapter, to hook up a 6V headlight, and 6V taillight, which you can control from the display
10.Supports up to 54.6V input voltage,this motor cannot works on 58.4V input voltage
11.The motor have a freewheel and not for foot/coaster brake build
coaster brake function -----it is means If you bike don't have any brake lever, you must use the motor with coaster brake function, otherwise you can choose the motor have a freewheel

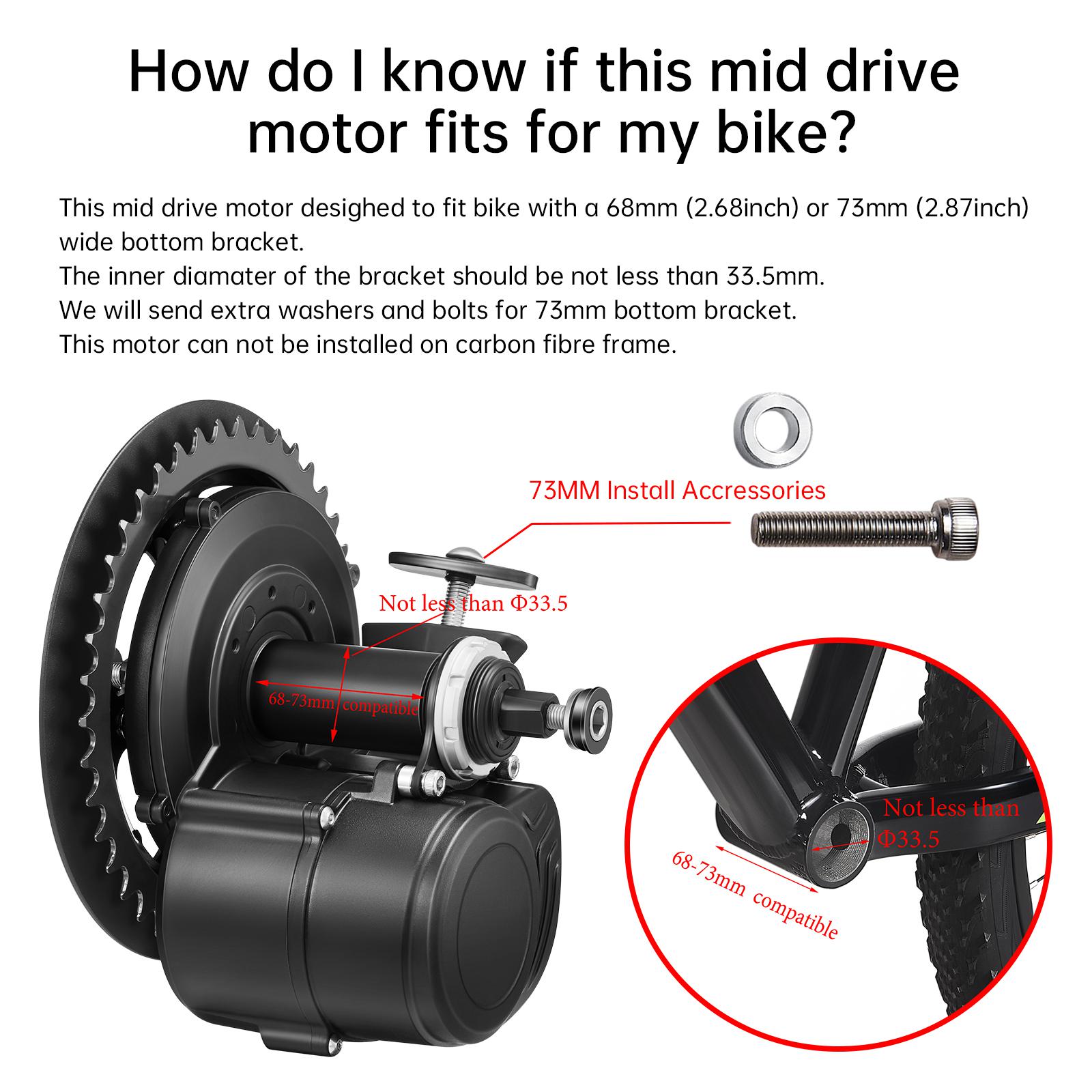

How do I know if this mid drive motor fits for my bike?
This mid drive motor desighed to fit bike with a 68mm (2.68inch) or 73mm (2.87inch) wide bottom bracket. The inner diamater of the bracket should be not less than 33.5mm. We will send extra washers and bolts for 73mm bottom bracket.
After installing the motor: If mechanical collisions happened between motor and frame, Add gaskets,We will send extra 1pcs 42*35*1.0 and1pcs 42*35*1.5 gaskets.If you do not add gaskets, It is easy crack the shell and destroy torque sensor.
Speed sensor:Tighten with cable tie,Keeping distance between 10mm to 15mm,The arrow align at magnet.
After installing Note:
The motor does not work when the mid motor TSDZ2 is no-load;
If the matching display’s model is XH18-LCD, rotating the throttle is only for Power assist shift.
Do not tough the pedals when turing on the display power.
1 year (based on the purchase data): Free repair,buyer pay for return postage and resend postage, buyer should return to Italy for repair, don't need return to china.
